Finishing Types

Summary

Finishing or postpress types streamline access to predefined "List of Calculation Units" related to finishing. The setup of Finishing Types is divided into two fields: one for job-related finishing and one for sheet-related finishing. This separation simplifies the selection process compared to earlier versions of PrintVis, which only had one finishing-type field.

Finishing Types

Finishing Types can be found by searching: PrintVis Finishing Types

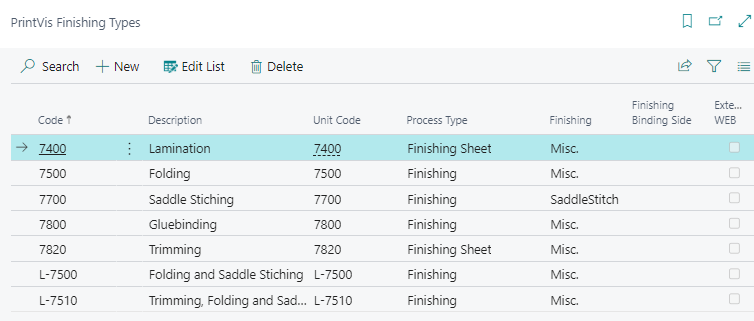

Finishing Types 1.jpg

  1. Finishing Job Field:
  2. Related to the entire job.

  3. Allows for job-level finishing units.

  4. Finishing Sheet Field:

  5. Related to individual sheets within the job.
  6. Provides access to sheet-specific finishing units.

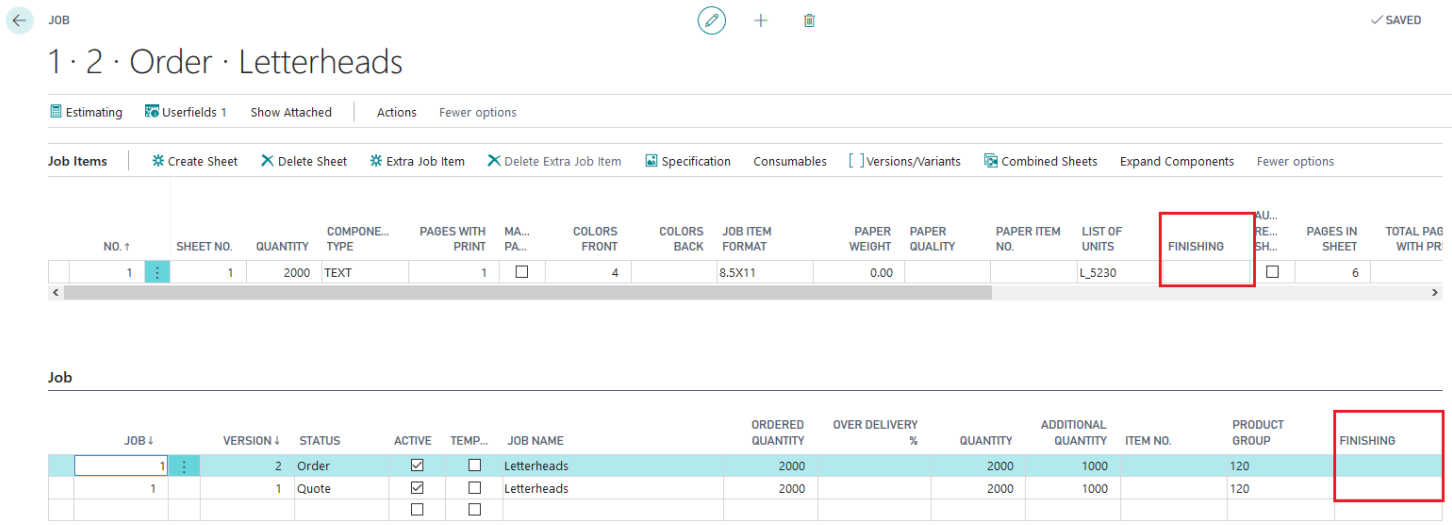

Finishing Types 2.jpg

Setup Example

  • Finishing Job: Filters for processes that apply to the entire job.
  • Finishing Sheet: Filters for processes specific to sheets.

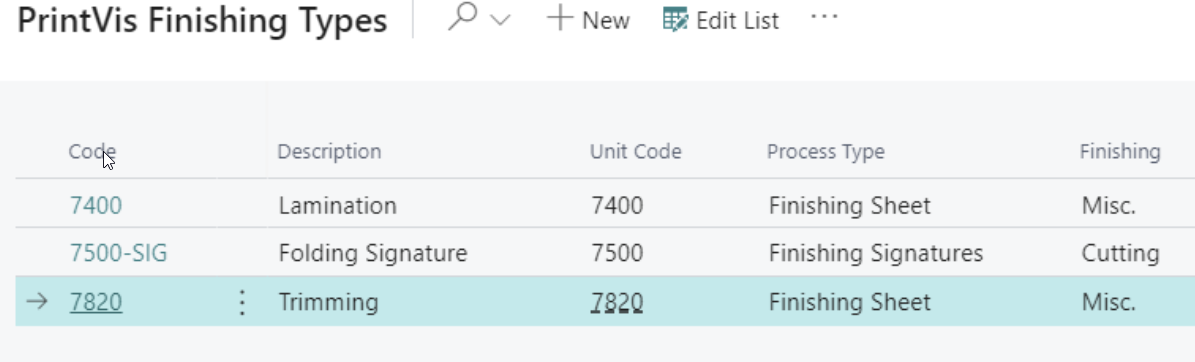

Finishing Types 3.jpg

Example: - Processes on Job Item Lookup: Filtered by "Finishing Sheet" and "Finishing Signature." - Processes Type on Job Lookup: Filtered by "Finishing" only, focusing on job-level processes not tied to specific sheets.

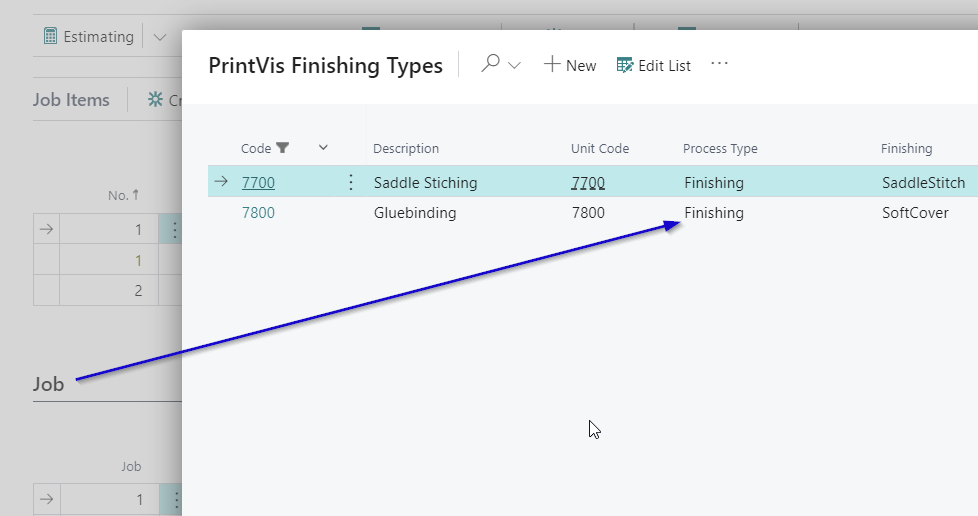

Finishing Types 4.jpg

Applying Filters

Filters can be applied based on product groups to narrow down the available finishing types for selection.
