Specification Page

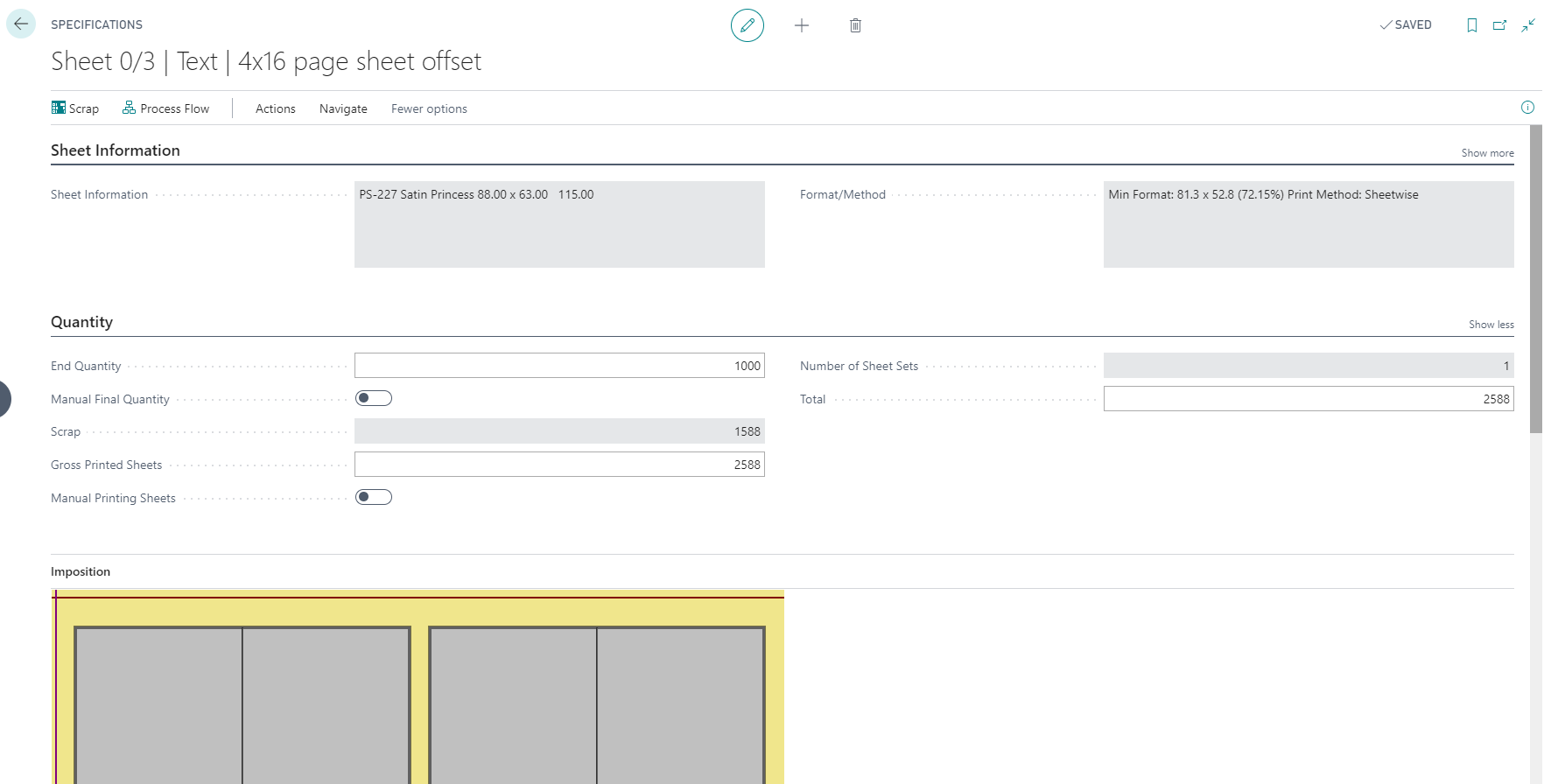

General Page Layout

• The page layout adapts based on the type of printing machine (sheet-fed, web-fed, continuous).

• The layout includes several FastTabs that display relevant fields for each type of machine.

• Access the specification page from various locations: case card job line, job card, estimating page.

---

Sheet-Fed Machines

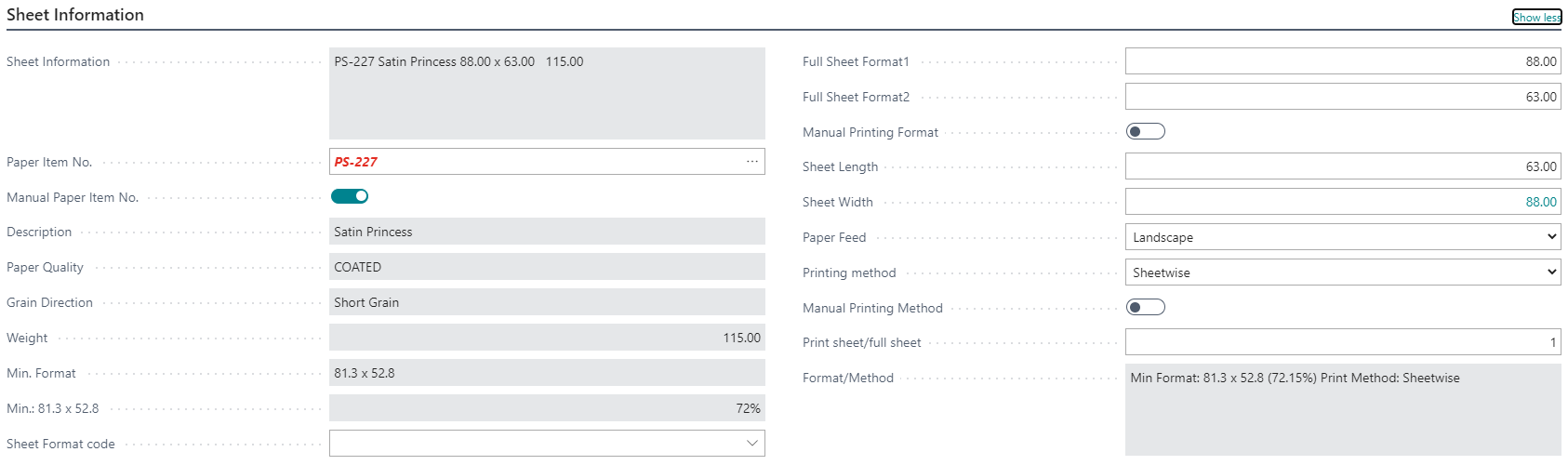

Sheet Information

• Contains fields for raw material and printing sheet information.
• Use the "Show more fields" option if needed to view additional fields.

Quantity

• Displays net and gross quantities for printing and raw material sheets.

---

Web-Fed Machines

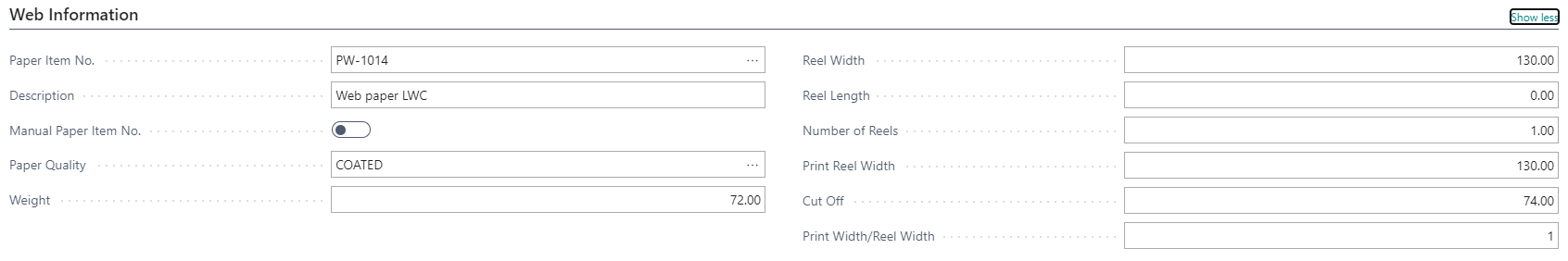

Web Information

• Contains fields specific to web-fed printing.
• Units for area or length are configured in the setup; printing is shown in the selected unit (e.g., linear meters).

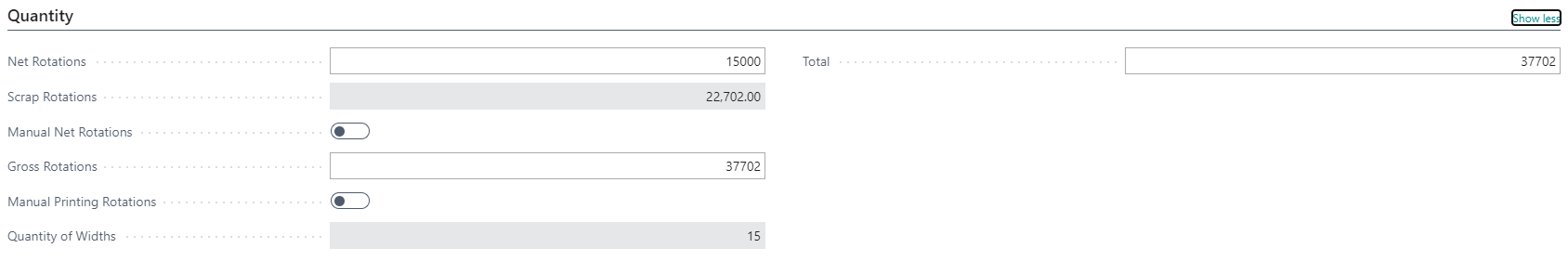

Quantity

• Displays net and gross quantities for printing.
• PrintVis calculates based on rotations.

---

Continuous Machines

Continuous Information

• Specific fields for continuous machines.

Quantity

• Displays net and gross quantities for printing.
• PrintVis calculates based on length (e.g., linear meters).

---

General - For All Machines

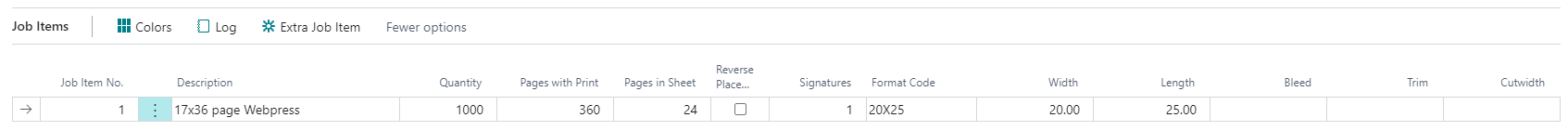

Job Items

• Shows data for job items on the selected sheet.
• To add job items:
• Create space using the "PartSheet…" fields.
• Press "Extra Job Item" to add another job item.
• Repeat as needed.
• Customizable columns and sorting options.

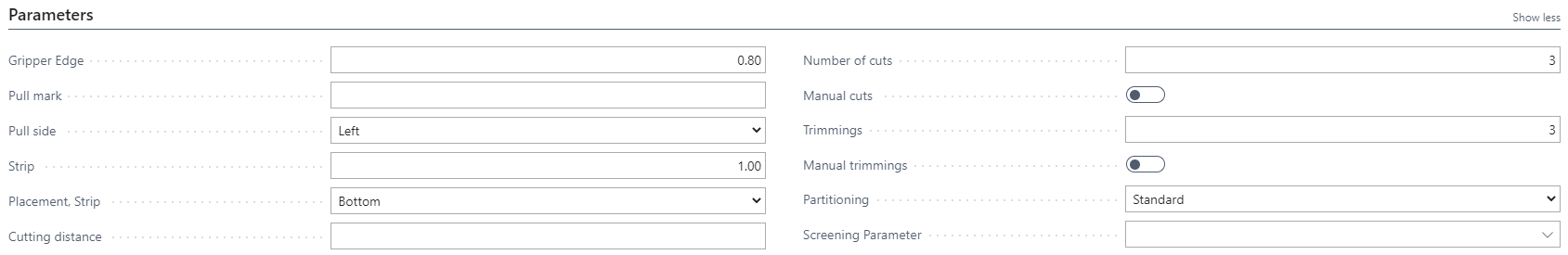

Parameters

• Displays machine configuration parameters.
• Values can be adjusted to influence imposition (e.g., reducing gripper space if not needed).

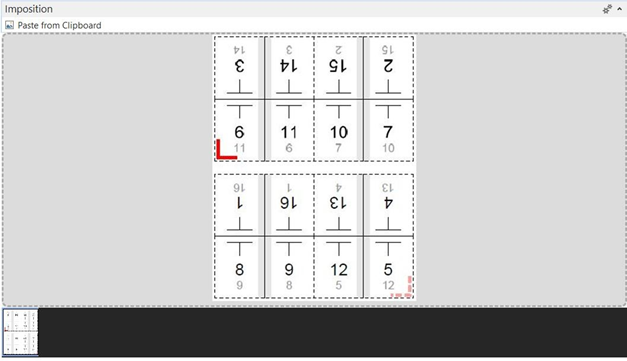

Imposition showing a picture

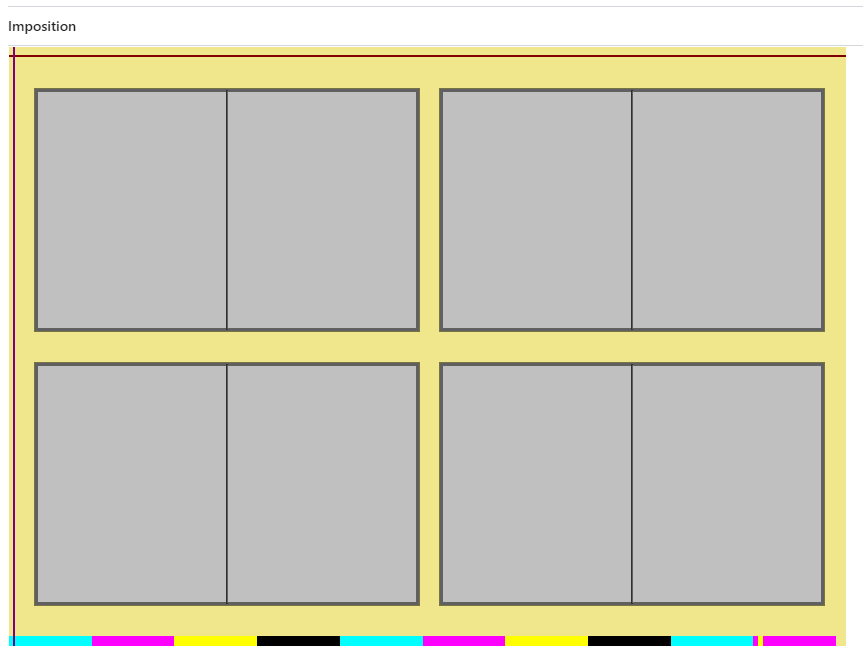

Imposition showing the PrintVis imposition drawing

• Displays either PrintVis imposition drawing or a picture.
• Pictures can be CIP4 folding catalog types or manually added images (e.g., packaging layouts).

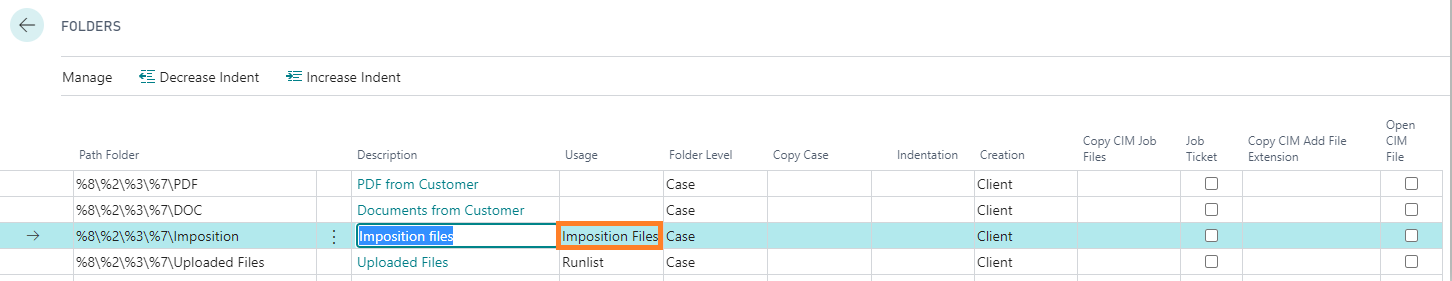

• Requires a designated folder in PrintVis Folder setup for imposition files.

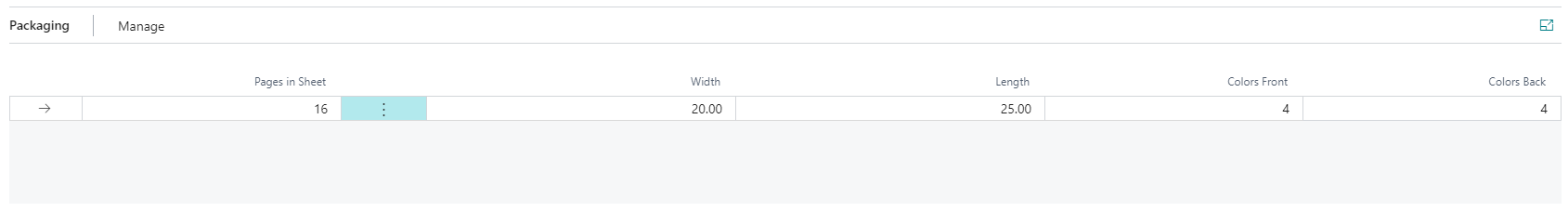

Special Job Items - Packaging

• For packaging companies needing CAD layouts.
• Fields are limited; typically only "Pages in Sheet" is needed.
• This FastTab is not shown by default but can be displayed by personalizing the page.
