Job Ticket Setup
Job Ticket Report Setup
About setup changes
When making setup changes, what does it take before it pulls through to Job Ticket?
| 1 | User Fields | straight away |
|---|---|---|
| 2 | Calculation Units | straight away |
| 3 | Planning Units | straight away |
| 4 | Department card changes | straight away |
However, when you are making many changes and testing straight on in the same session, you may want to consider the following refreshing options: Report 6010303 reads the setup with each generation and print.
-
Close and reopen Case Card
-
Recalculate job
-
Deactivate and reactivate active version (Planning units)
Report Selection
There are different PrintVis Job Tickets. Report No. 6010303, 6010370, and 6010900 (newer version). The newer version has a different formatting and also allows users to what fields/information is being used in the RDLC file easier.

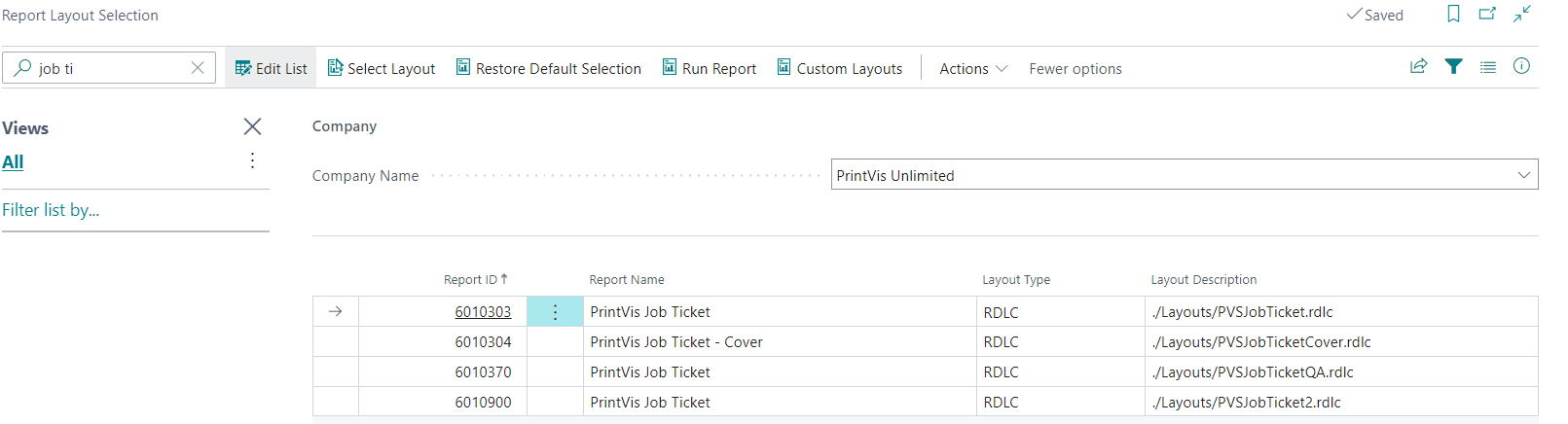

In order to see the different reports, see the different layouts, and make changes to the layout in the Report Layout Selection page:
How and what to do

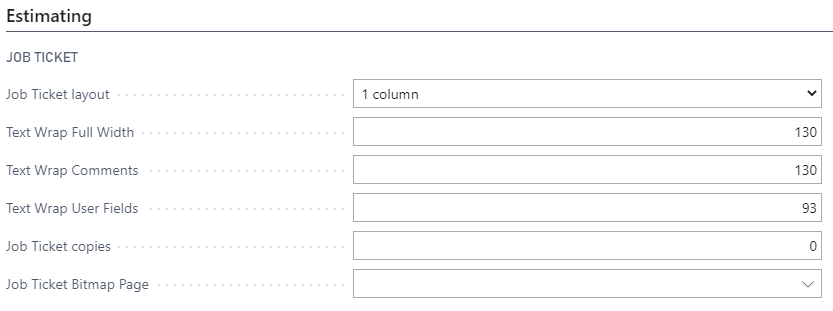

1. PV General Setup

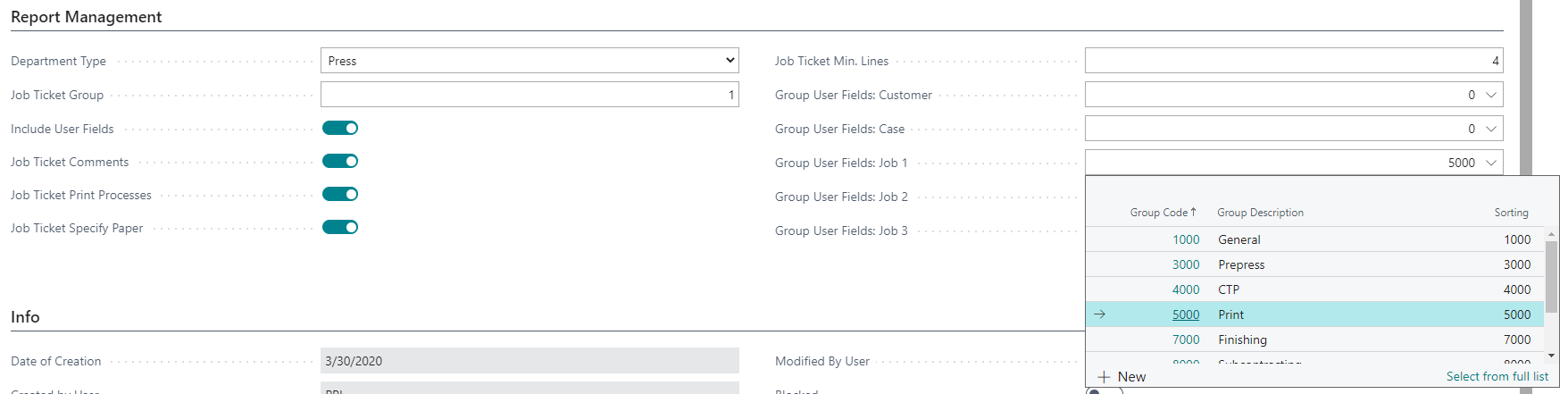

2. Setup on Department Card
Report Group (normally 1)
Presentation of data (only print processes and paper on print dept.)
Connect to User Field Groups
3. Fields filling in from Job/case
-
Job name
-
External Description
-
Customer data
-
Shipment data
4. Printing Process Line
5. Internal comments placed under its department

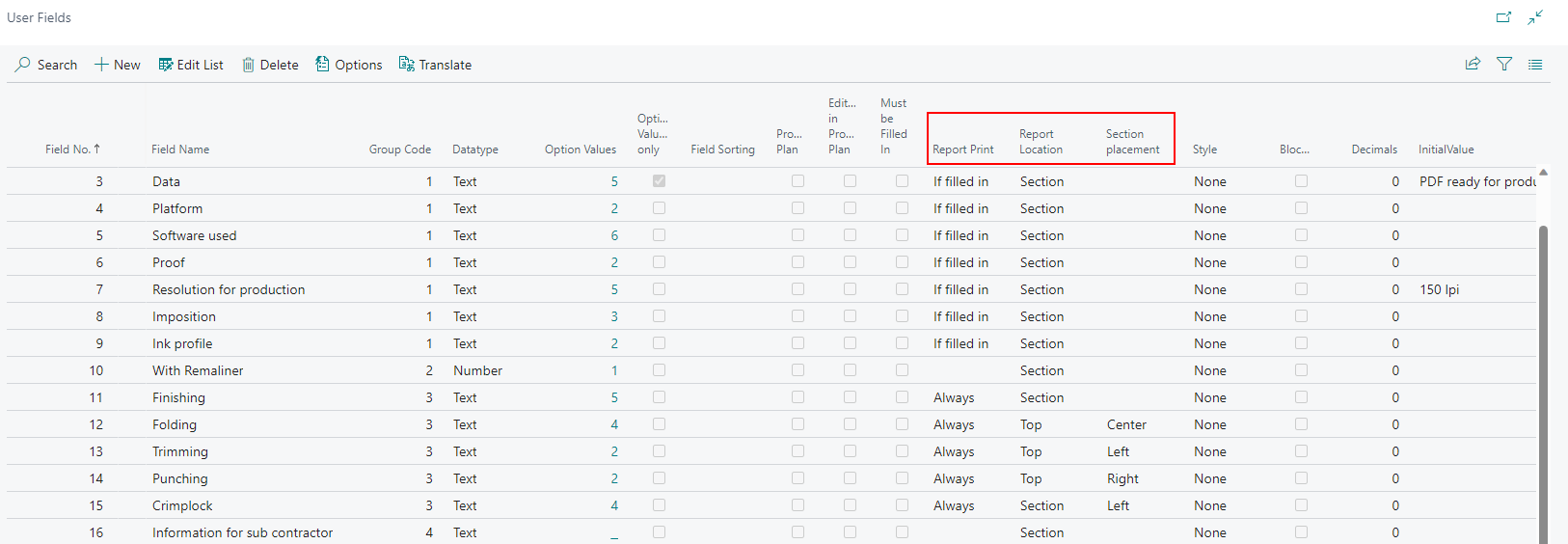

6. User fields
Control placement: header/body/footer
Print when: never/if data/always
Section placement
Easy to tick all and then peel off the unnecessary ones later. Easy to make this a customer superuser job to do this.
Note: If you have an Initial Value defined, the field "Report Print" must be "Always".

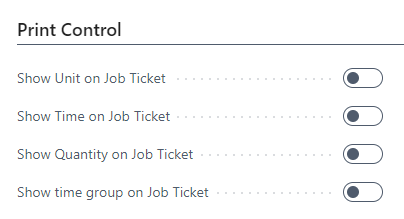

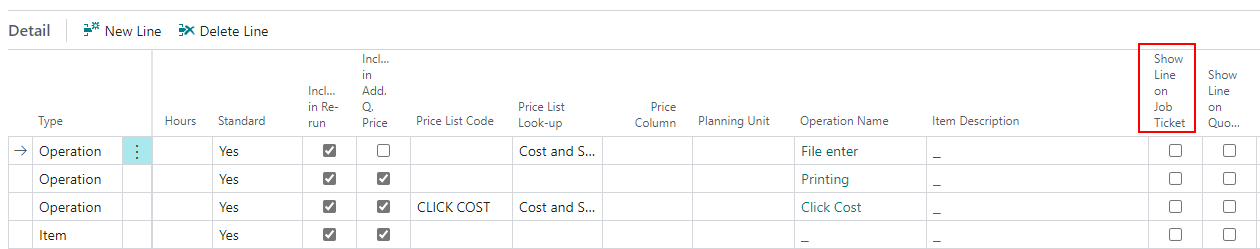

7. Calculation Unit setup
Easy to tick all and then peel off the unnecessary ones later. Easy to make this a customer superuser job to do this.

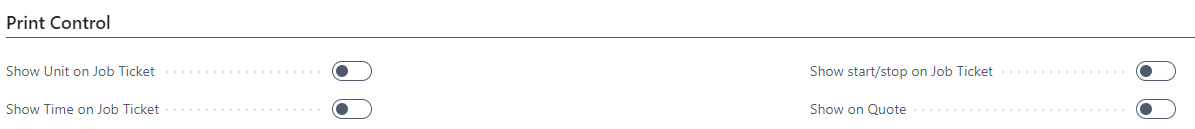

8. Planning unit setup
Easy to tick all and then peel off the unnecessary ones later. Easy to make this a customer superuser job to do this.
Setup results

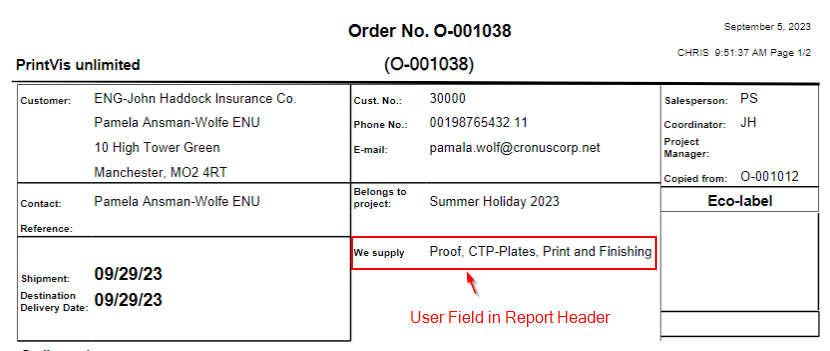

Header:
Body:

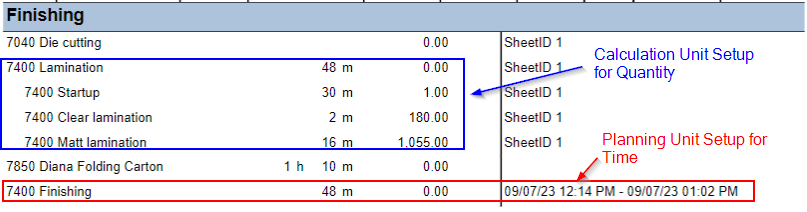

Picture points out location of the following:
-
Internal comment
-
User Fields in body (going through Group 3)
-
Calculation lines from Price unit with quantity
-
Planning units with planned time and start/stop
Please job ticket example here: Job Ticket Sample
