EasyPost Shipping Integration
1. Setup

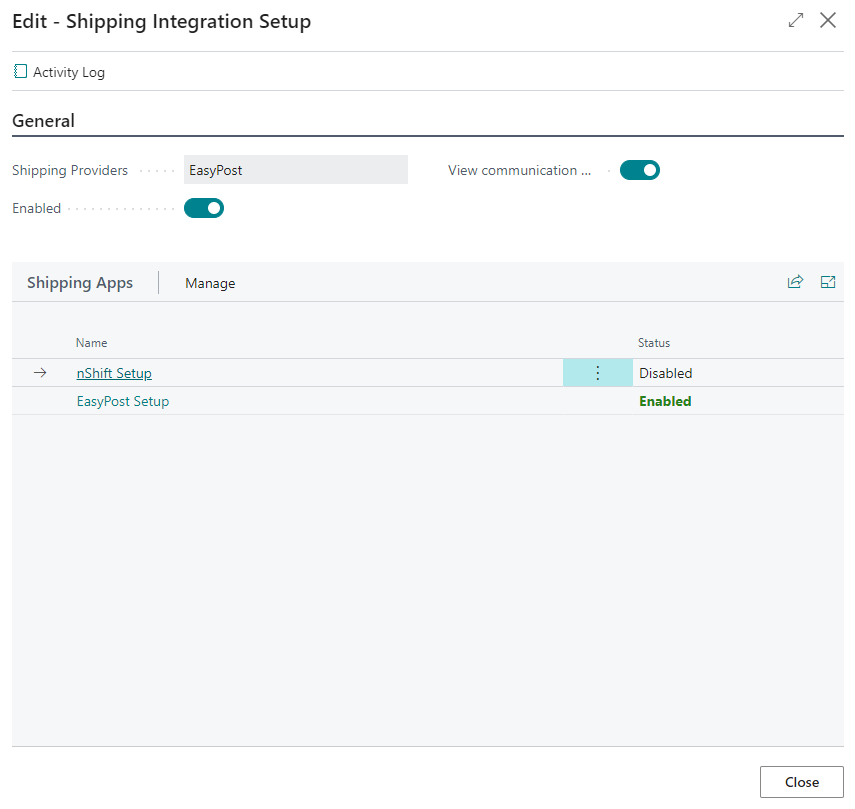

1.1 Service Connections Setup

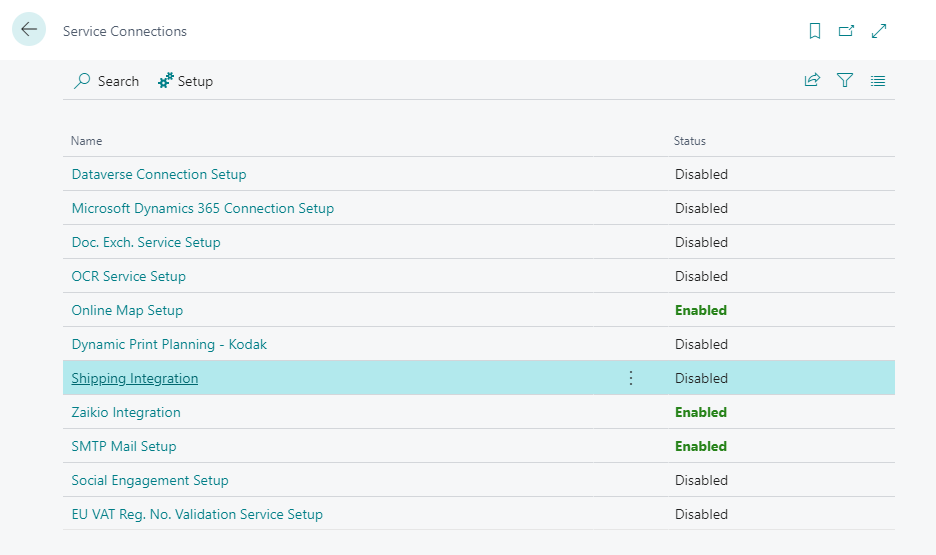

- Navigate to Service Connections and select Shipping Integration.

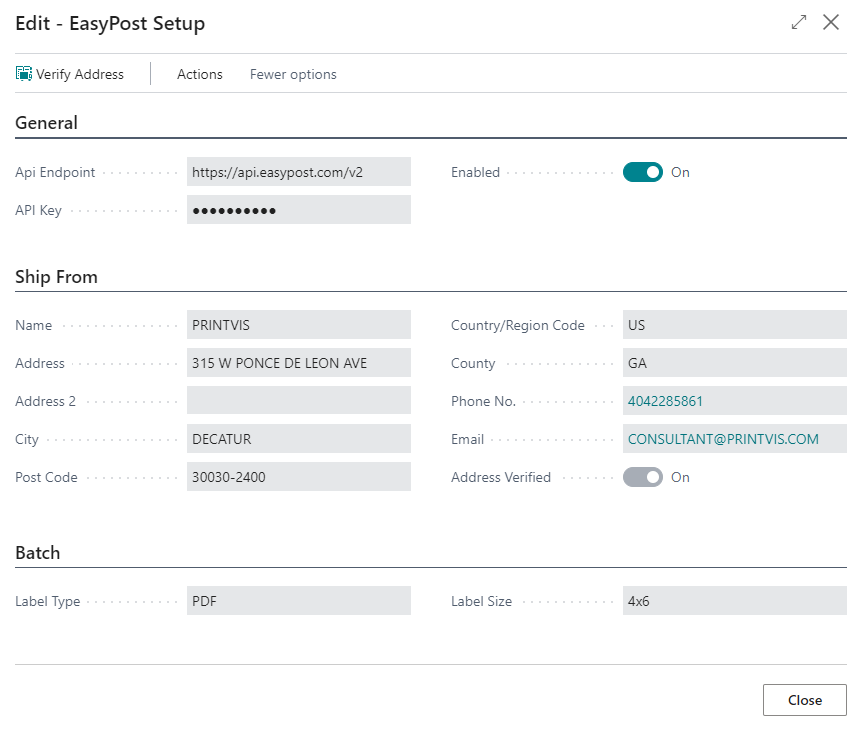

- Set the default shipping service and configure detailed service setups, including API Endpoint, Key, Ship From location, and Label Type.
- Use the View communication checkbox for testing API calls.
1.2 Shipping Agent Setup

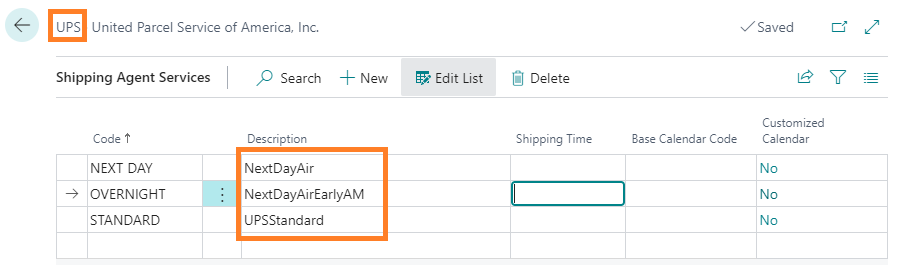

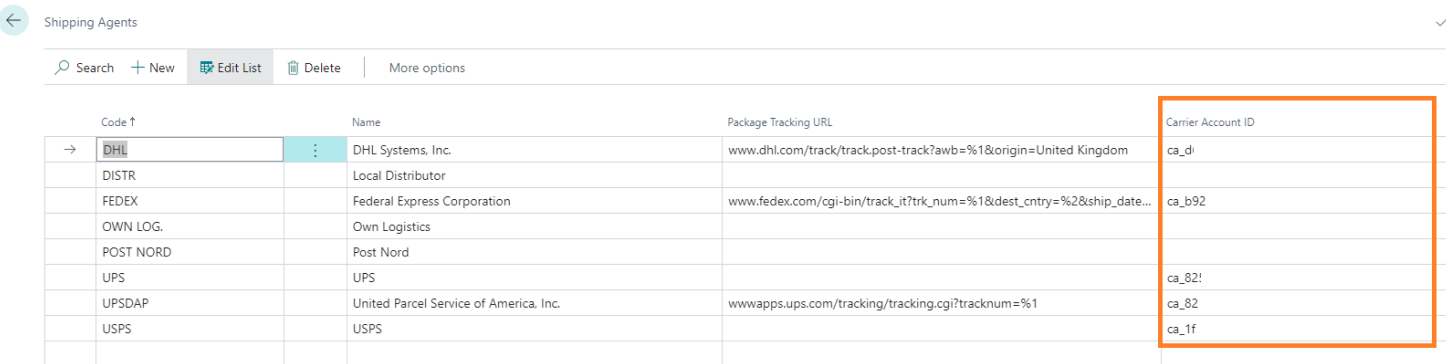

- On the Shipping Agents page, enter the Carrier Account ID (matching EasyPost's ID). Ensure that the agent and services match the carrier guide.
1.3 EasyPost Account Setup
- Create an account at EasyPost.

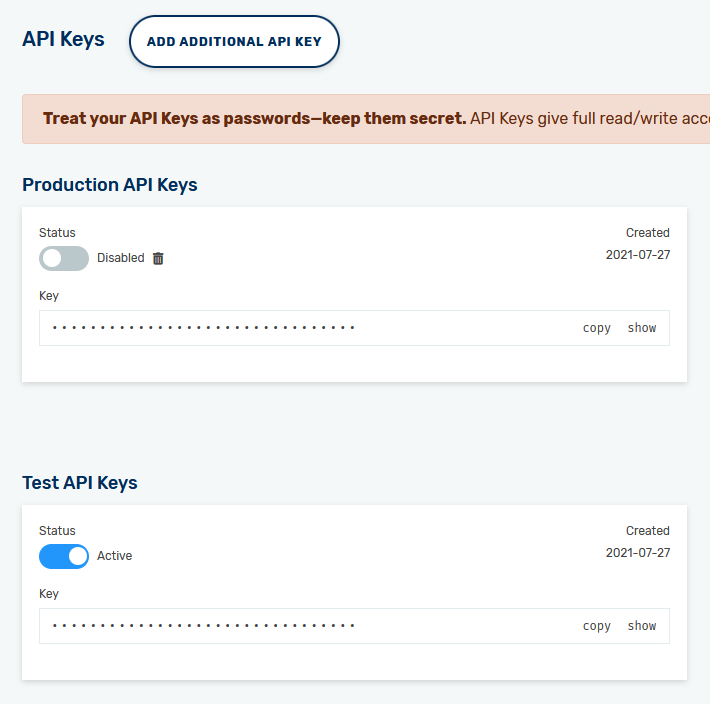

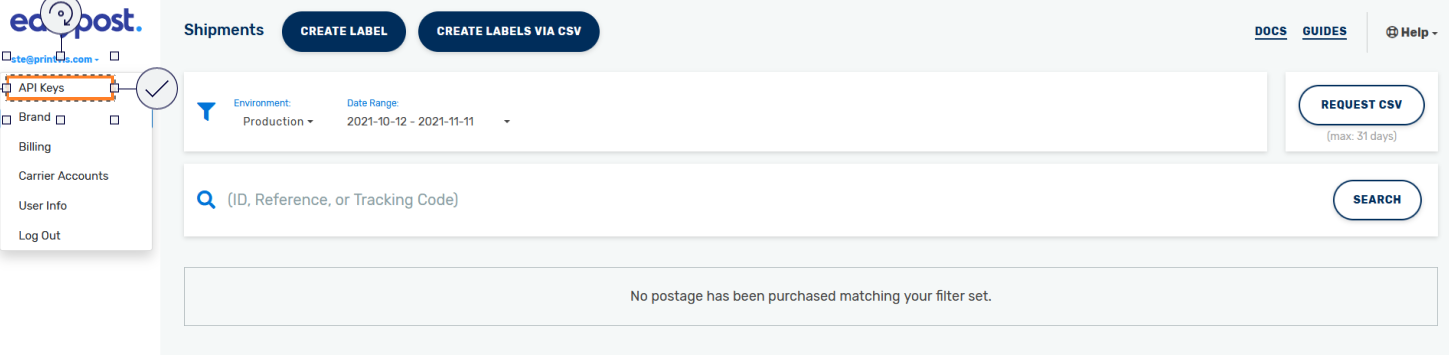

- Access API Keys and Carrier account settings.
- Add the API key to the EasyPost setup in PrintVis.
1.4 Predefined Packages/Custom Label Code Setup

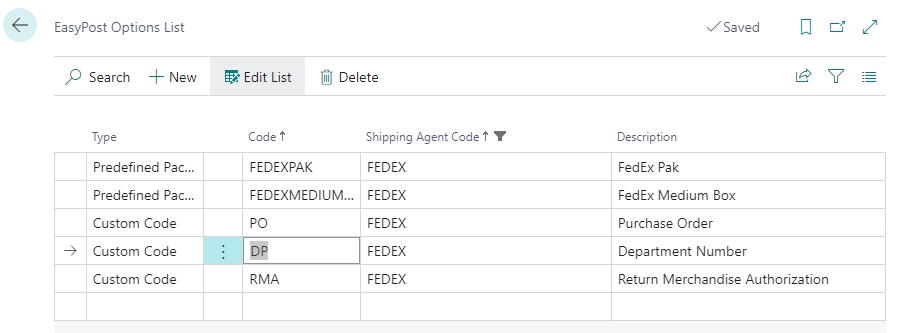

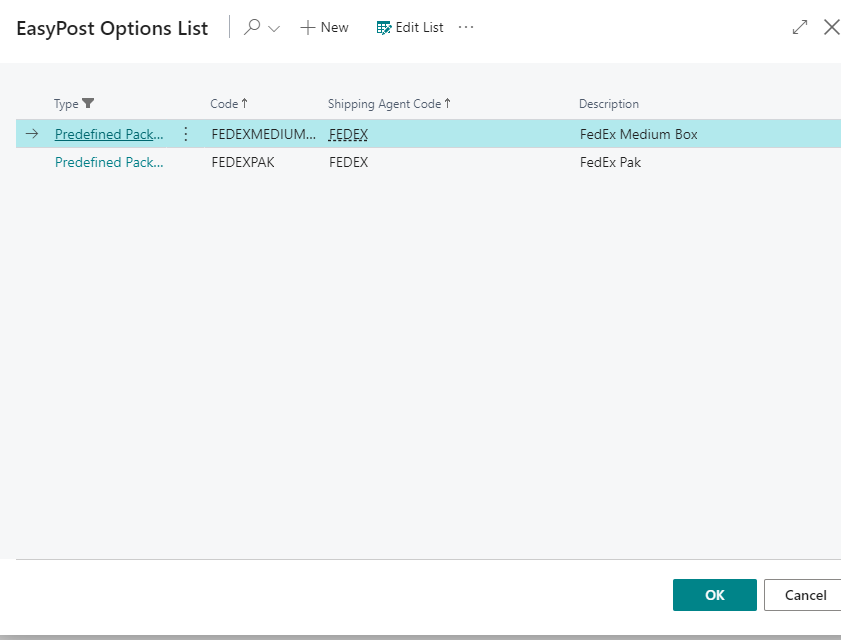

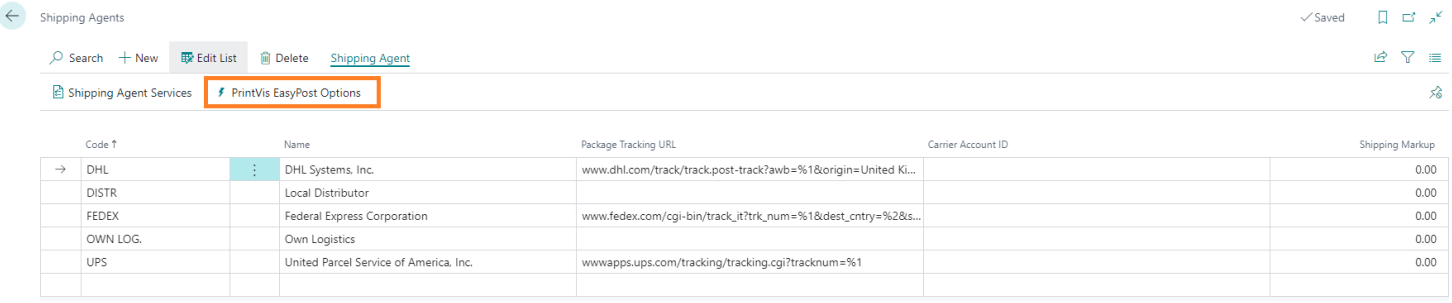

- For carriers requiring predefined packages or custom label codes, configure them in EasyPost Options on the Shipping Agents page.
- Set Predefined Packages and Custom Label Reference Codes based on EasyPost API guides.
2. Usage
2.1 Overview

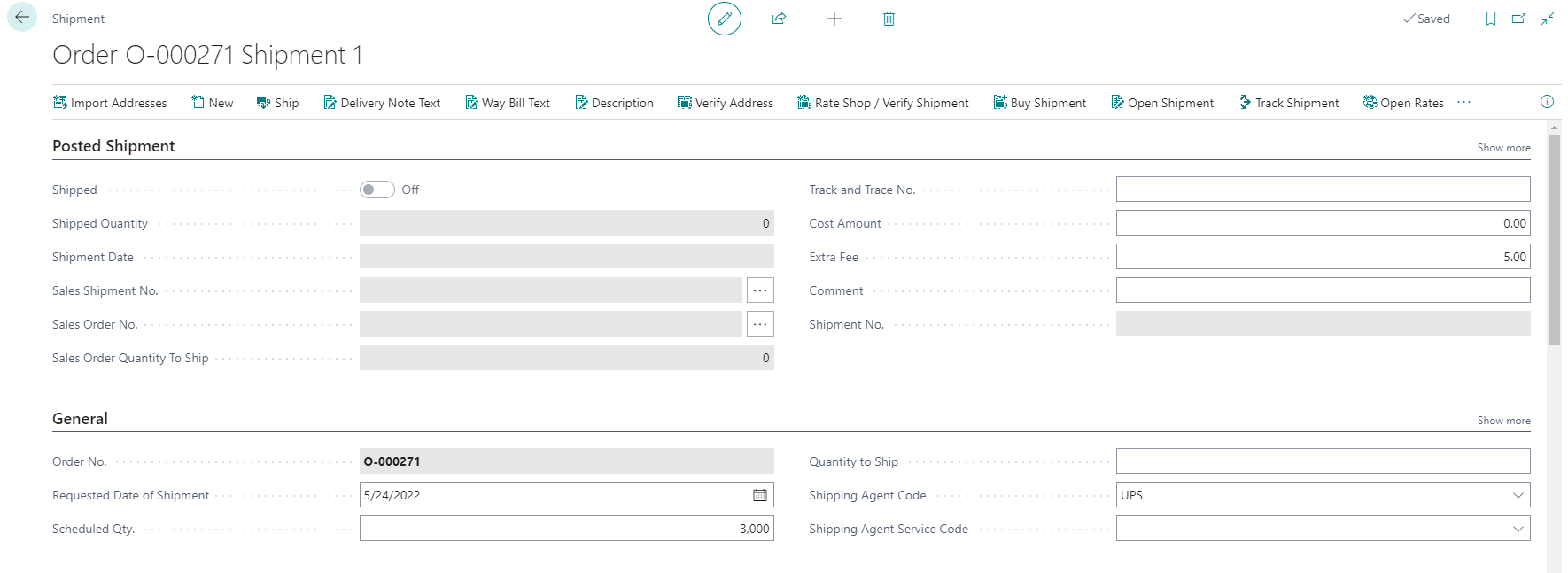

- With shipping integration enabled, new actions (e.g., Verify Address, Rate Shop, Buy Shipment, etc.) appear on the Shipment Overview, Shipment List, and Shipment Card.
2.2 Verify Address

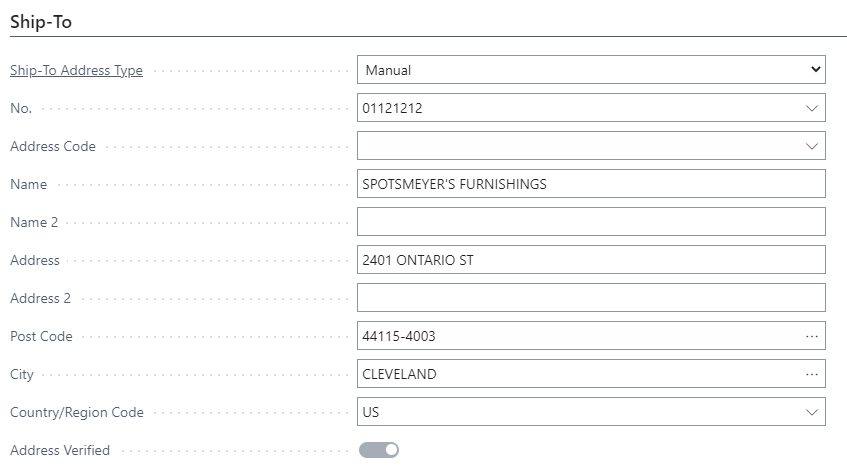

- This action checks if the ship-to address is correctly formatted and enables the Address Verified checkbox if valid.

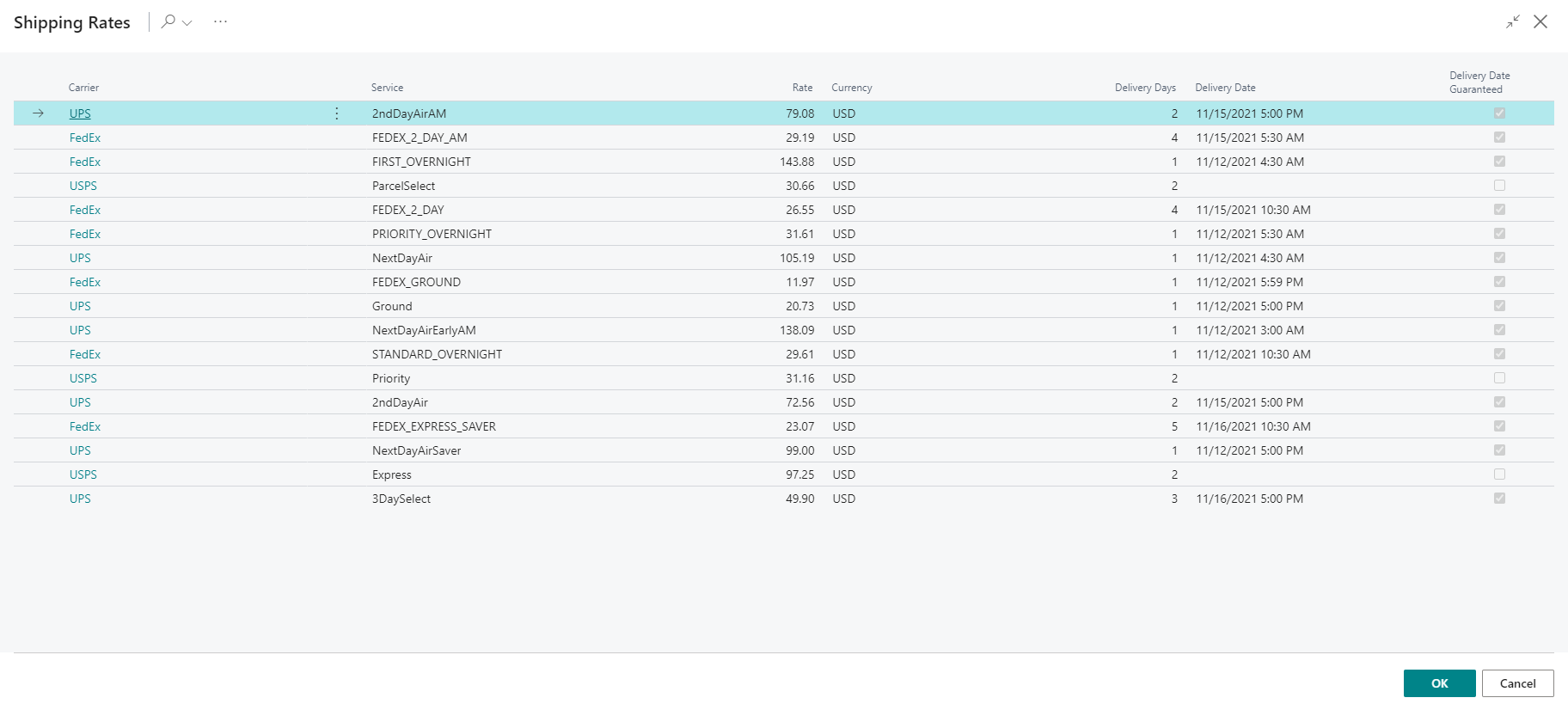

2.3 Rate Shop / Verify Shipment
- Displays rates for all setup shipping agents. The rates are filtered if an agent/service is already selected.

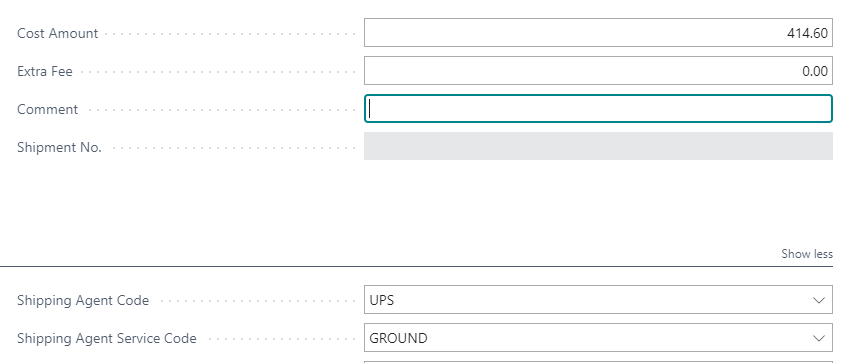

- Once a rate is selected, the Shipping Agent, Service, and Cost are filled in.
2.4 Buy Shipment
- Submits the shipment, purchases it, and returns labels. Also marks the shipment as shipped and fills in the Track and Trace Number.

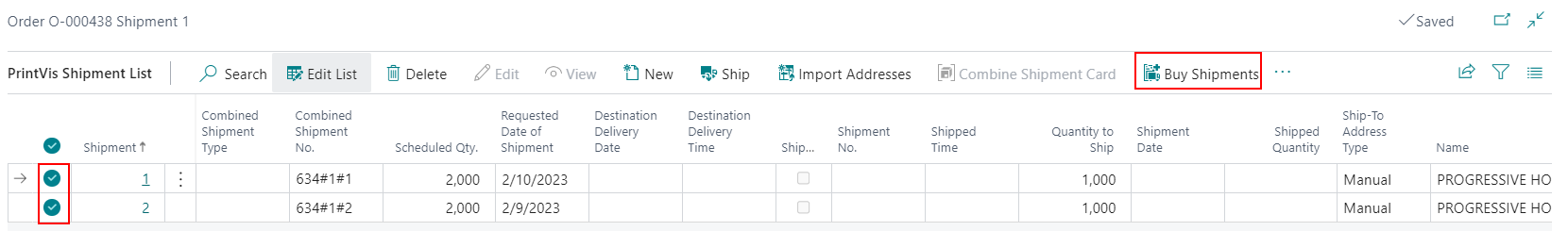

- Multiple shipments can be purchased at once if all shipping details are complete.

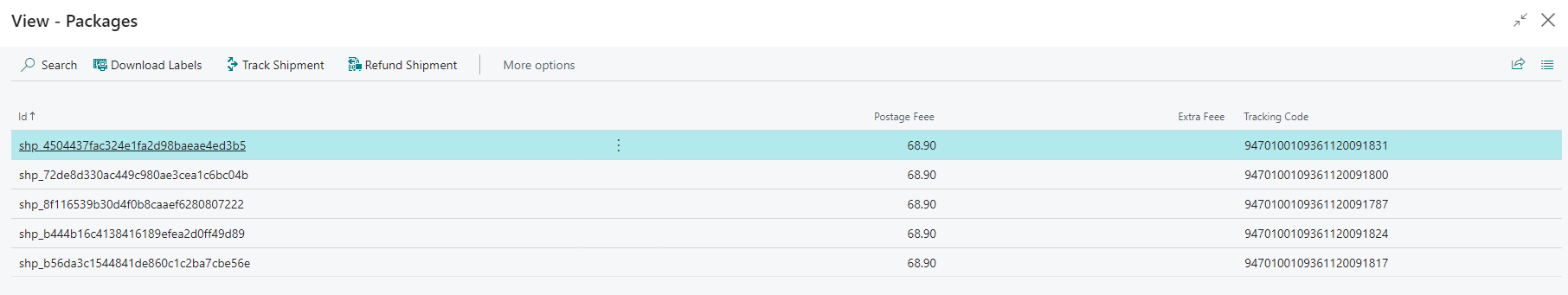

2.5 Open Shipment
- Displays details about packages in a shipment, including ID, Fees, and Tracking Code.

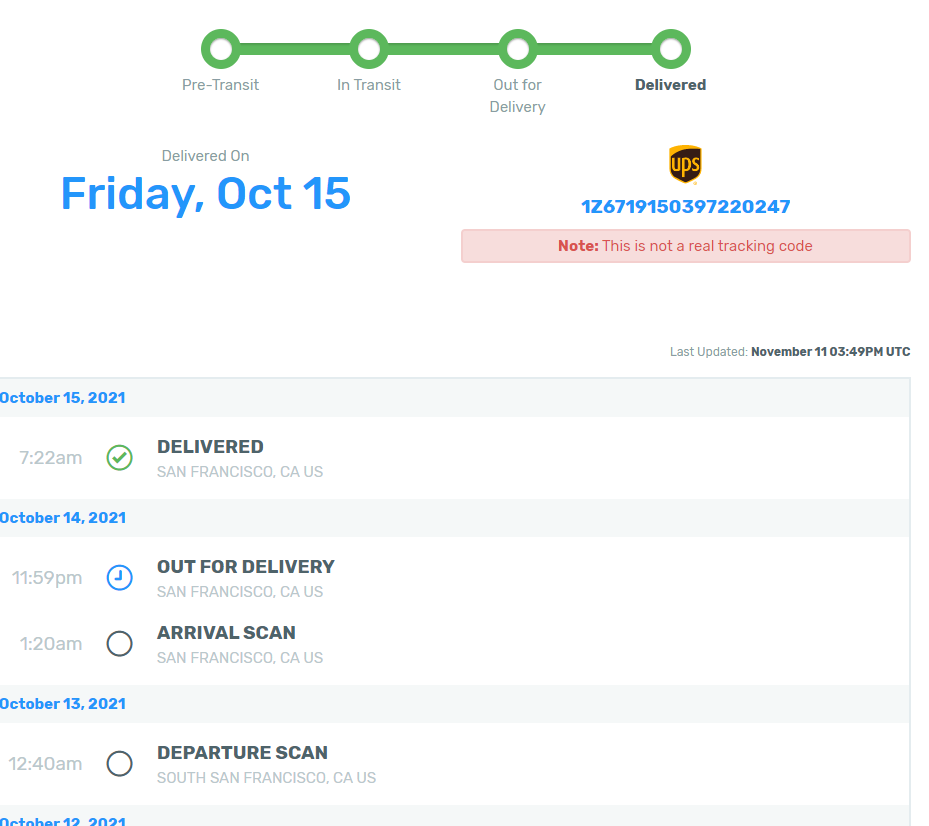

- Options include reprinting labels, tracking, or refunding the shipment.

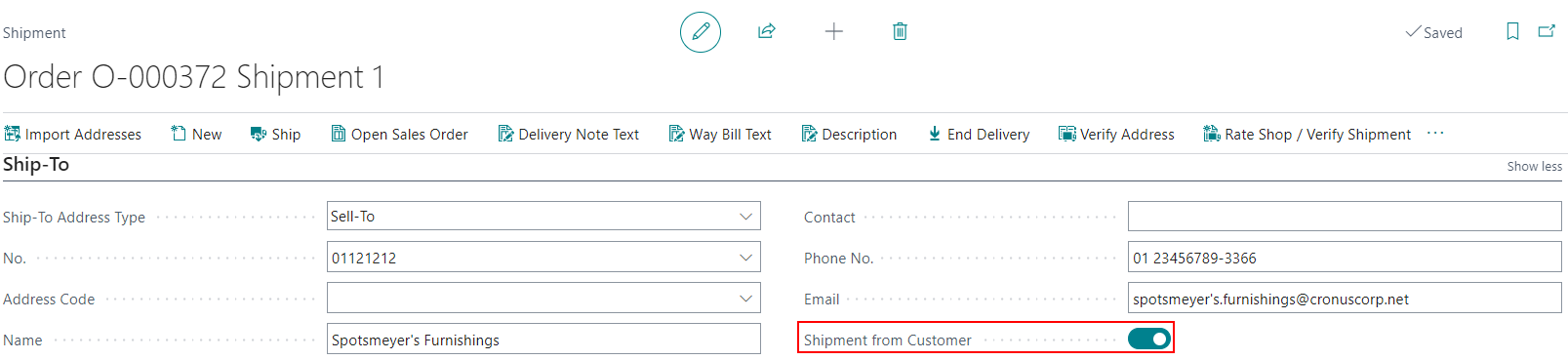

Shipment from Customer
Generates labels with the Sell-To customer’s name and address instead of the company.
Combined Shipments
Multiple shipments can be submitted simultaneously, and their labels are compiled into a single PDF.
Label Fields
Reference Fields for Labels
Up to three reference fields can be added to the label, pulled from the EasyPost setup. - Predefined Packages: Pulled from the EasyPost setup to determine the correct rate based on package type.

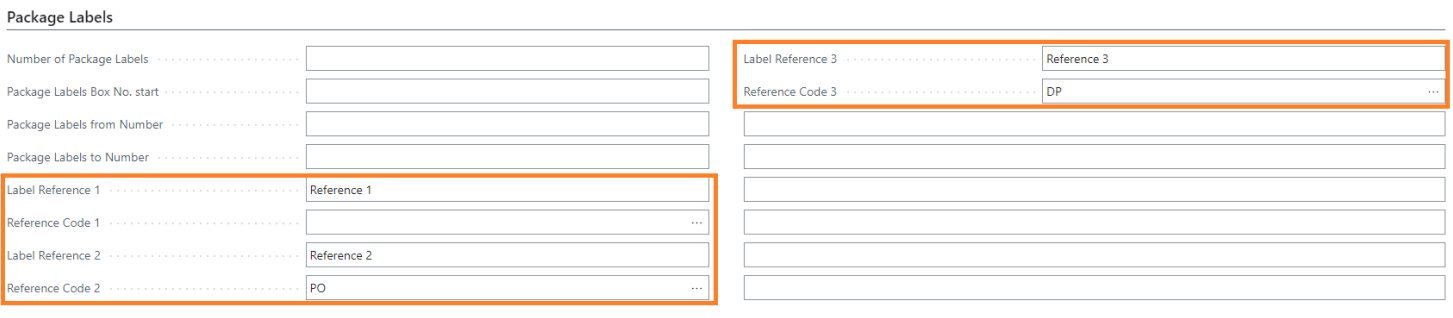

There are 3 fields on the shipment card called:
- Label Reference 1 / Reference Code 1
- Label Reference 2 / Reference Code 2
- Label Reference 3 / Reference Code 3
These are optional fields that can be filled out to be displayed on the label when it is printed.
The reference code fields are pulled from the EasyPost Options setup. This list is:
- Filtered if a Shipping Agent is selected on the shipment.
- Shows all codes if no shipping agent is selected.

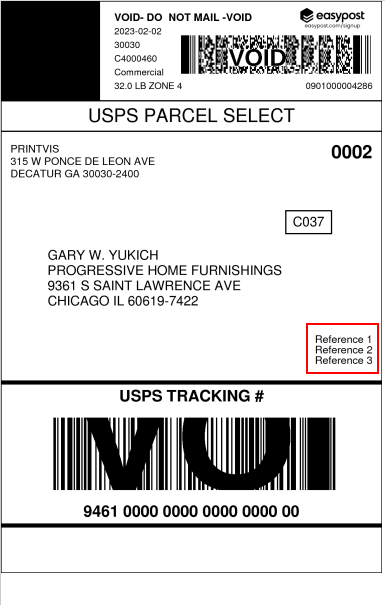

How the Reference Fields Appear on the Label
Text, letter – Description automatically generated

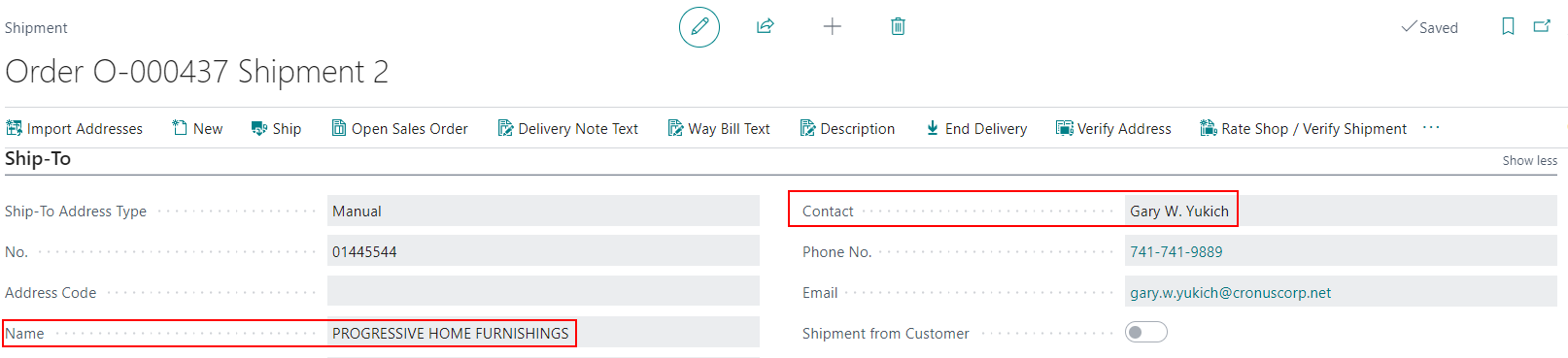

Name and Contact
Name and Contact fields on the Shipment card are mapped to be printed on the label when printed. This allows:
- The ship-to name of the company to be displayed on the label.
- The ship-to contact field to display which person at the ship-to customer should receive the package(s).
Graphical user interface, text, application, email – Description automatically generated
How the Reference Fields Appear on the Label
Text, letter – Description automatically generated

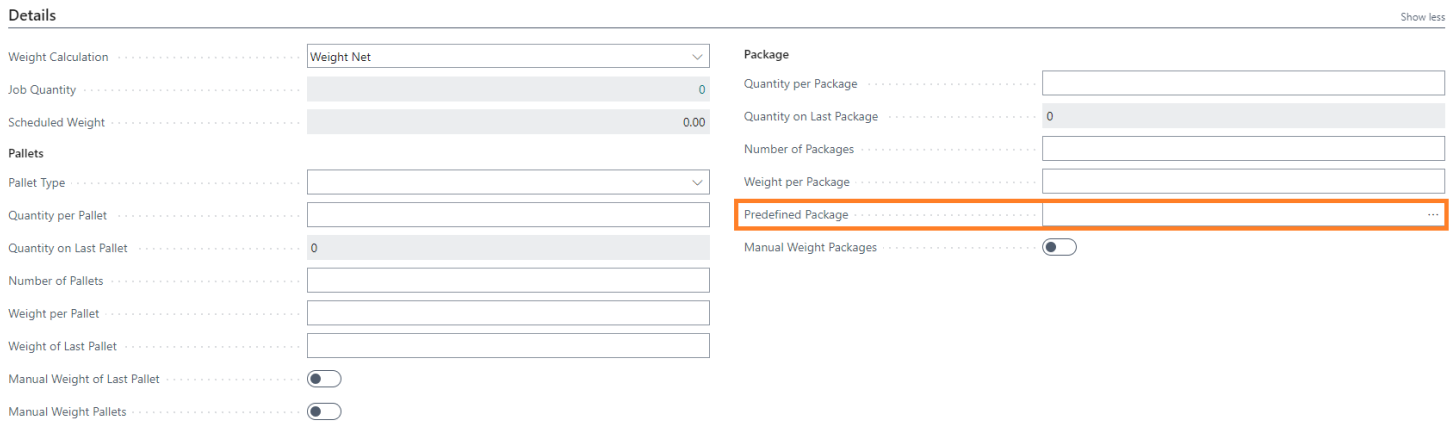

Predefined Packages
The Predefined Packages field values in the Details section of the Shipment Card are pulled from the EasyPost Options setup. This list is:
- Filtered if a Shipping Agent is selected on the shipment.
- Shows all packages if no shipping agent is selected.
The predefined package is sent to EasyPost when verifying the shipment to pull the appropriate rate for that package type.
Customs
At the bottom of the Shipment card, there is an EasyPost FastTab that holds the information for customs when sending a shipment to an international address.
The information placed in the fields will be passed to EasyPost. The commercial invoice gets returned with the shipping label in the PDF sent back by EasyPost when customs information is included.
More information about EasyPost customs can be found in the article:
