Introduction
PrintVis Report Setup is a tool for creating customer-facing documents by using PrintVis standard reports, a setup to build the data for the dataset, and a (custom) report layout. The cases are mainly used to run from a case or in combinatio with a case (Purchase Order report requires a case ID in the header). This is why they are also called PrintVis Case Reports.
In this documentation, you'll find information on how to set up the text components to be transferred to the reports, and how to edit the report layout.
Setup Areas
The following areas can be used to build the content and layout for a report.
-
PrintVis Report Selection Setup / Report Selection - Purchase
-
Choose the report objects for the specific report type.
-
Setup for the PrintVis Purchase Order report by using the Report Selection - Purchase.
-
-
PrintVis Report Setup
-
To choose the fields and areas for the product description in the report.
-
This is building the data for the dataset for the report.
-
-
Custom Report Layouts / Report layouts
-
To edit the layout for the PDF and email.
-
In simple words: This is where to place the data from the PrintVis Report Layout. Standard Business Central.
-
-

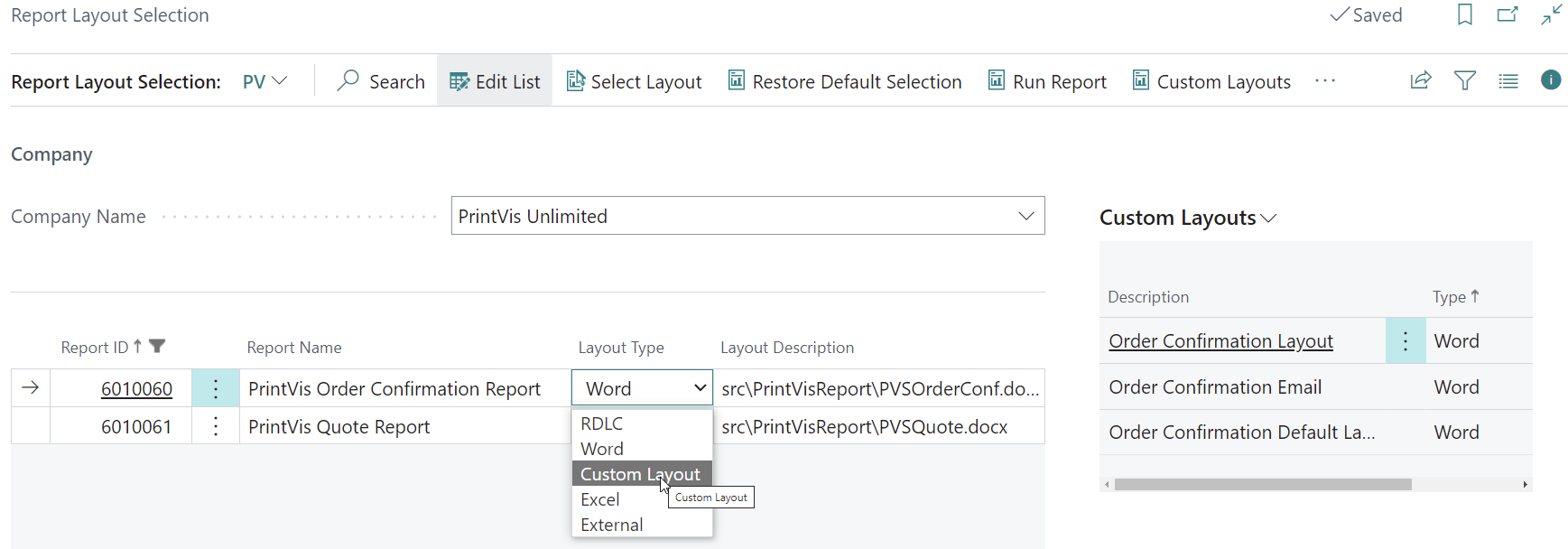

Report Layout Selection
- To select the standard or custom layout. Standard Business Central.
PrintVis Report Selection Setup

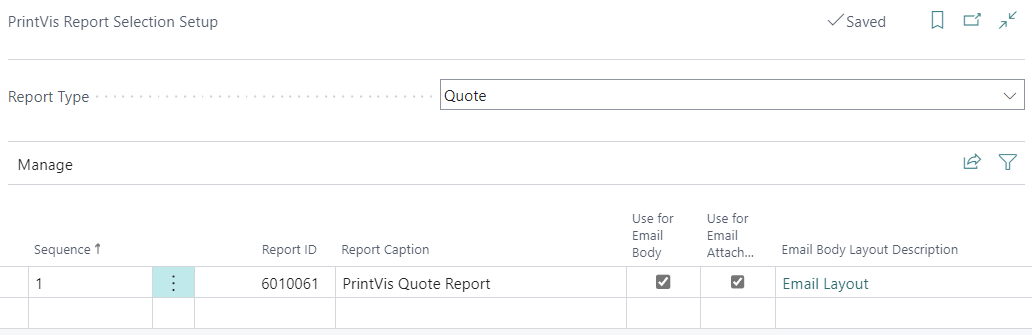

The PrintVis report selection setup offers the user the choice of the report object ID for the selected report type. If more than one report is selected per type, PrintVis will come up with the question to choose the desired report. If only one report per type is selected, on most areas this selection will not be shown and the report started right away.
For setup, search for "PrintVis Report Selection Setup."

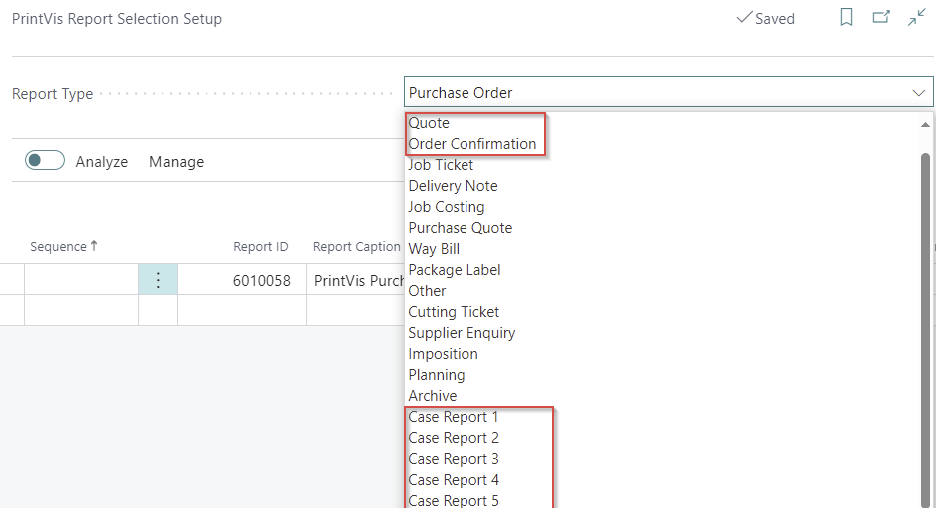

These are the released Report Types:
Supported Report Objects
The actual available/supported standard reports are:
-
PrintVis Quote Report
-
Report 6010061
- Supports 1 job only with multiple versions
-
-
PrintVis Order Confirmation Report
-
Report 6010060
- Supports 1 job only with multiple versions
-
-
PrintVis Case Report 1
-
Report 6010054
- Supports 1 job only with multiple versions
-
-
PrintVis Case Report 2
-
Report 6010056
- Supports 1 job only with multiple versions
-
-
PrintVis Case Report 3
-
Report 6010059
- Supports 1 job only with multiple versions
-
-
PrintVis Case Report 4
-
Report 6010066
- Supports 1 job only with multiple versions
-
-
PrintVis Case Report 5
-
Report 6010067
- Supports 1 job only with multiple versions
-
-
PrintVis Purchase Order
-
Report 6010058
-
This report is made for sub-contracting and PrintVis order-specific purchases, to be able to integrate PVS Order information into the purchase document, that is e.g. sent to a sub-contractor who is doing lamination or other outsourced tasks.
-
It is based on the Business Central 365 Purchase Order report but might not support all functionality of the current BC report.
- For standard Business Central 365 Purchase Orders it is recommended to use the standard BC Purchase report.
-
PrintVis Report Setup
The reports come with a dataset that is common for all reports, where fields such as document number or address can be chosen. Additionally, there are special sections that can be set up to build a detailed description on the report and for the product.

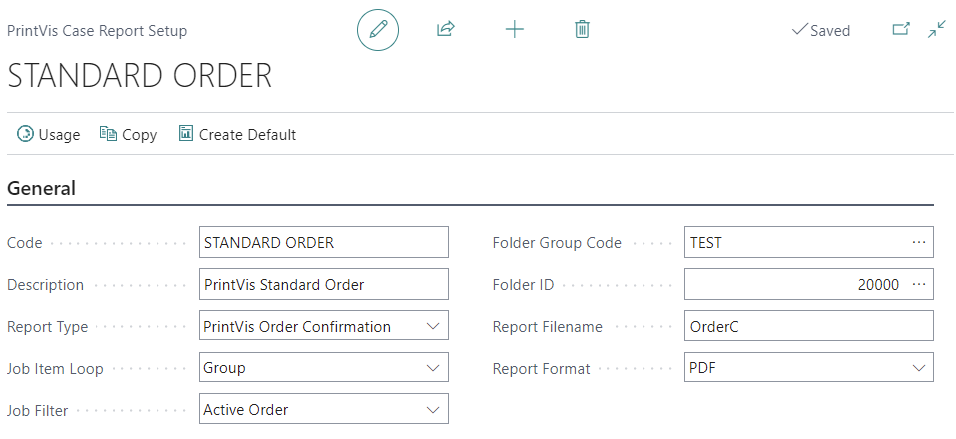

PrintVis Report Setup List and PrintVis Report Setup Header

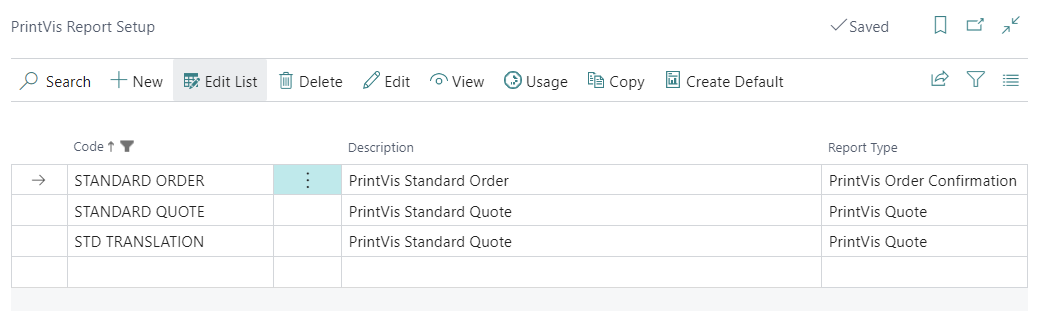

The PrintVis Report Setup is the list of all existing report setups.
The fields from the PrintVis Report Setup List are also available on the header of the report setup:
If you choose a line in the list of report setups and hit View or Edit, or if you click "New," you get to the PrintVis Report setup.
| Field | Description |
|---|---|
| Code | Enter a code for the setup line. A code must be unique. |
| Description | Enter a description for the setup line. |
| Report Type | Select a report type for this setup. Options are:
|
| Job Item Loop | With this setting, you can select if the text block is created by:
The default setting is "Group". |

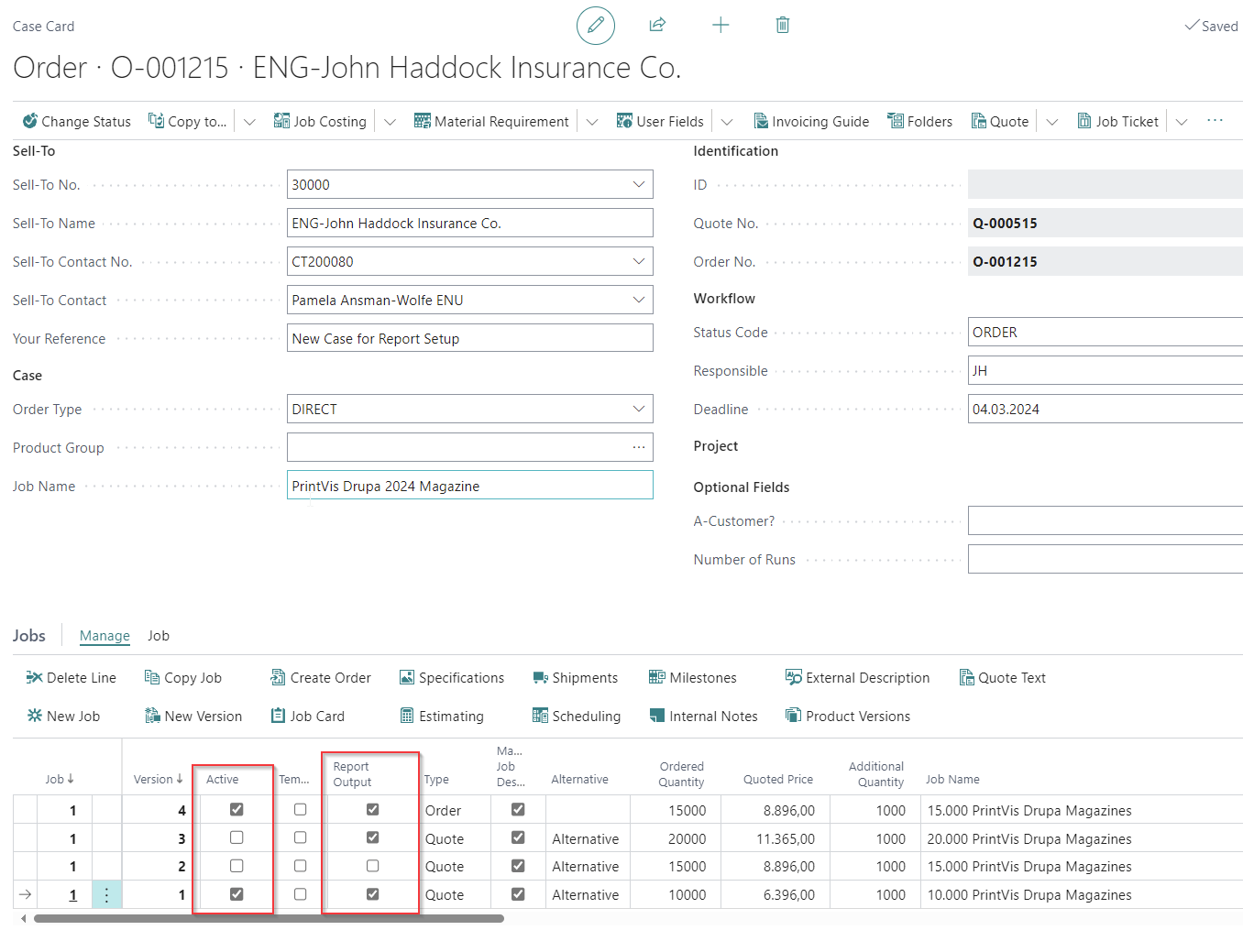

| Job Filter | To set up which job version should be used to pick up the
data.
|
| Folder Group Code | Select a Folder Group Code if the report should be stored as file. It is not mandatory to store the report as file. |
| Folder ID | Select a Folder ID (sub-folder in the Folder Group) if the report should be stored as PDF file. It is not mandatory to store the report as file. |
| Report Filename | Enter a custom file name if a different than the default name is desired. |
| Report Format | Choose if the file should be stored as a PDF or MS Word file. Please note: The MS Word file might not support all details from the layout. Please test your report layout if the layout looks identically to the MS Word output. |
| Action | Description |
|---|---|
| Usage | To choose which setup is used in which relation. See Usage description below. |
| Copy | To copy an existing setup to a new one. |
| Create Defaults | To create the PrintVis defaults for the Standard Quote and Order
Confirmation. Codes "STANDARD QUOTE" and "STANDARD ORDER" will be
created with the default setup. If those codes already exist, a dialogue will ask to overwrite the existing ones. If the existing ones should be kept, please copy them by using a different code. |
| Export Report Setup to JSON | To export the current setup into a JSON type file. This action can be used if a setup was created and tested in a sandbox and should be now moved to the production environment. |
| Import Report Setup to JSON | To import and JSON export file from a report setup. Make sure not to import a file with a code that is already existing which will provoke an error. If necessary, use a replace function from a text editor tool to change the code in the JSON file. |

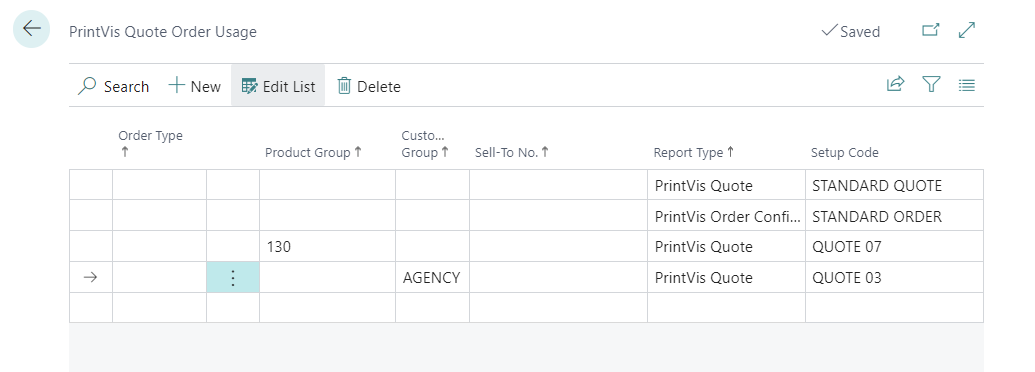

Usage Setup
- To set up when to use which setup code.
For general use, it is recommended to set up a line by only using Report Type and Setup Code for each Setup Code. After that, it is possible to specify which Setup Code should be used per Order Type, Product Group, etc.
Copy Function

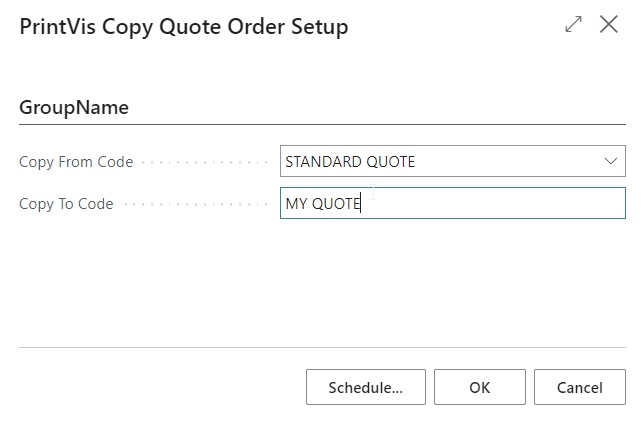

If a setup should be copied to start a new setup code, you can use the copy function:
Choose the code to copy from (Field: Copy From Code) and enter a code (Field: Copy To Code) for the new setup and hit OK. A copy of the setup has now been made with the new code and is ready to use or edit.
Create Defaults

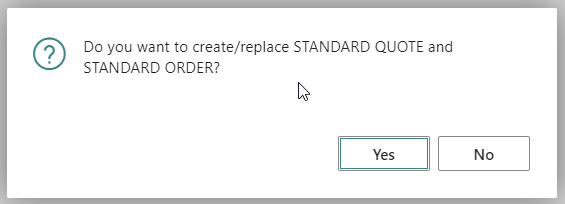

By using this action, the user is able to create the PrintVis defaults
for the Standard Quote and Order Confirmation. Codes "STANDARD QUOTE"
and "STANDARD ORDER" will be created with the default setup of fields.
If those codes already exist, a dialogue will ask to overwrite the
existing ones. If the existing ones should be kept, please copy them by
using a different code.

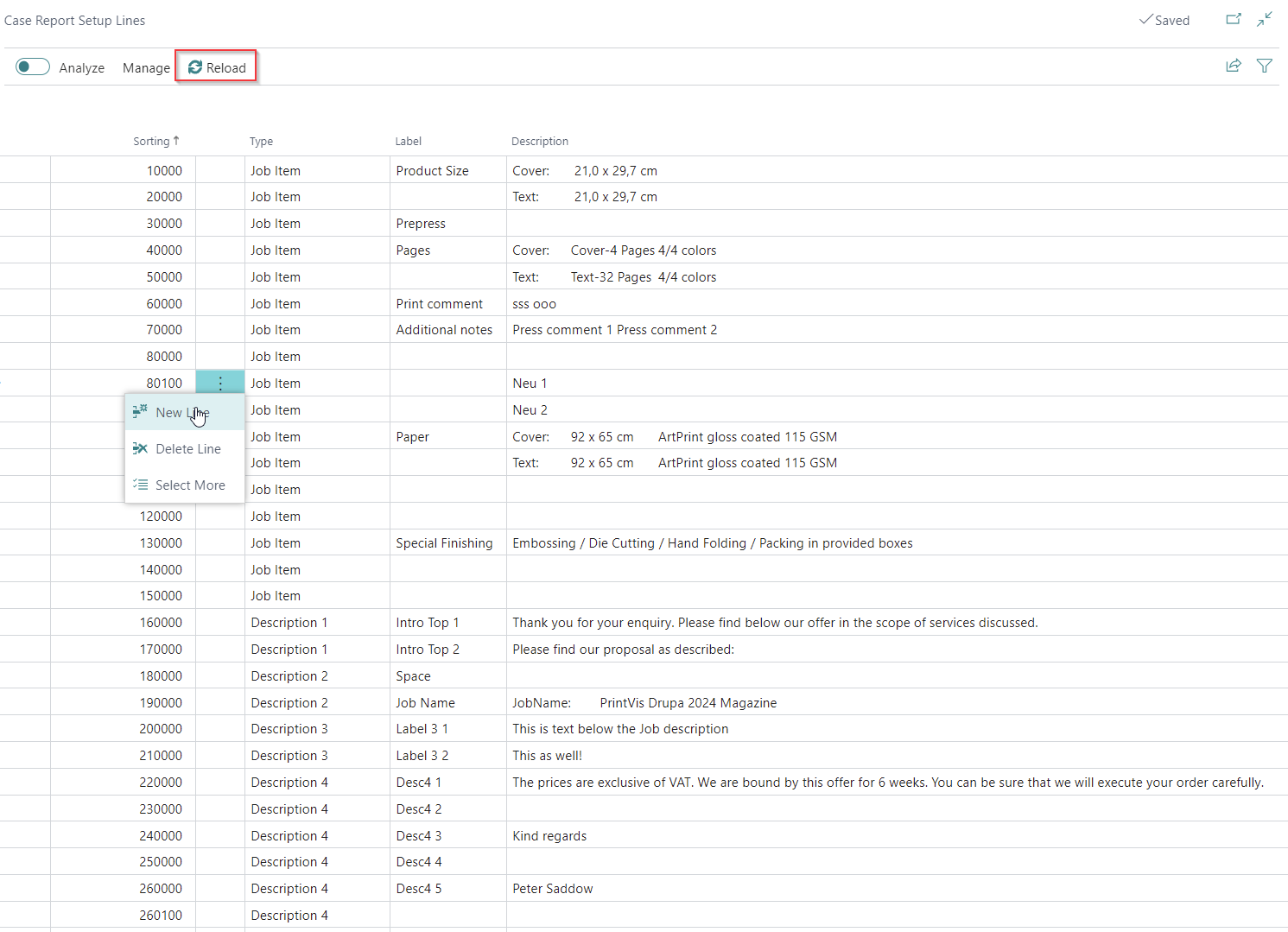

PrintVis Report Setup lines - Description Section

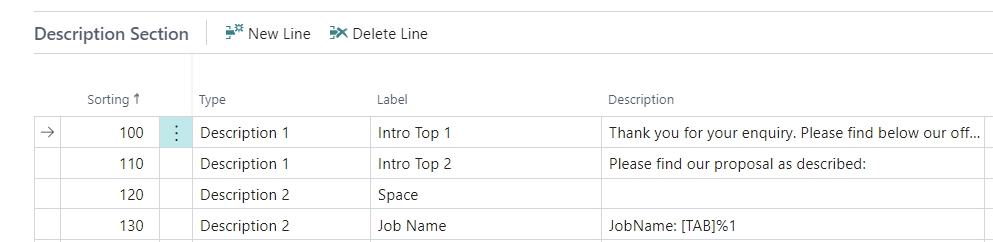

In this section of the page, a setup can be made to describe details for the report. There are sections in the report which can be individually placed in the report. Each line can read values from up to 6 fields that can be chosen from different tables and combined with fixed texts that can also contain translations.
Setup example:
| Description Section Field | Description |
|---|---|
| Sorting | Enter a sorting to bring the different types/sections into a desired
sequence. The lines are always grouped per type, which means it is not
possible for example to have 1 line of a type (e.g. Description 3) above
the pricing grid and another line of the same type (e.g. Description 3)
below the pricing grid. All lines are grouped per type and will be added to the report based on the sorting number. |
| Type | Choose one of the existing types to build the texts to
display.
Please find a detailed description for every option below this table. |
| Label | This is the label (first column) for the description lines. It can
be a fixed text or use data with field variables (%1, %2...%6) described
in the Description field below. Every label is printed only once if the descriptions were looped. If the label field is not mandatory to be used in the report. If no label is desired just remove the "Label-Column" from the report layout. If a label is desired, the "Label-Column" must exist/be added in the report layout. |
| Description | The description for the current setup line, which can build a
text block.
|
| Translations | To look-up and add translations for different language codes from
recipient. If a text block is setup, the easiest method is to copy the Description field and then translate the fixed text only. |
| Show | Selects if a line should be displayed always or only if one of the fields 1-6 is containing a value. |
| Field 1-6 | Choose a field to read a value from. |
Setup types
The special sections (Type field in the setup) that can be built by the PrintVis Report Setup are the following:
-
Description 1-20
-
-
These sections can be placed individually in the report layout and can be used for all kinds of data as well as variable intro and outro text blocks.
-
These are lines of general descriptions that can be placed as a block somewhere in the report. Those lines can contain field values from the database and also hard-coded text with translations, if additional languages must be supported in the documents.
-
Please Note: In the sample reports only Descriptions 1, 2, 3 and 4 are setup and used.
-
If you need to use Descriptions 5-20 you have to add those fields to the report layout and the place you it to appear!
-
-

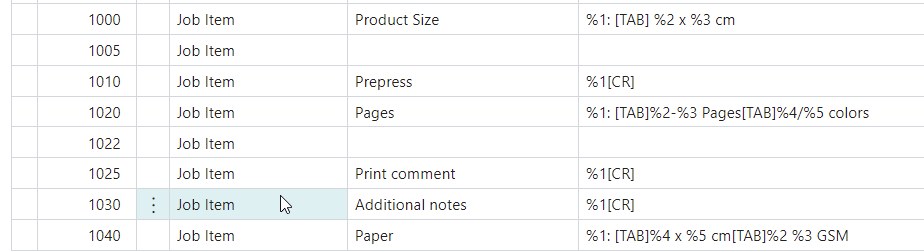

Job Items
-
-
To choose job- and job items-related fields and build a product description.
-
Field values can be chosen from job items and other places in case-related tables.
-
The fields will be looped for all job items, e.g.
-
To describe all components (Text, Cover, etc.) and their details, like no. of colors or print substrate.
-
-
-

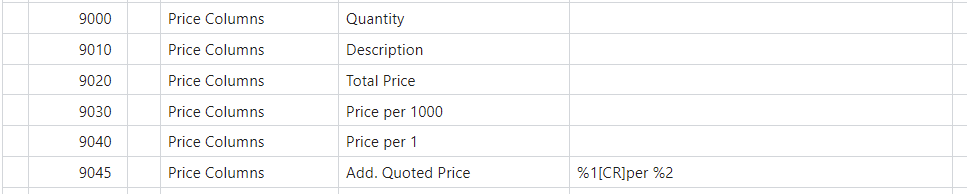

Price Columns
-
To build a pricing grid for all versions of a quote / or the order job lines.
-
Max. 6 columns can be used. Make sure you only have as many columns in the report layout that are setup in the report setup.
-

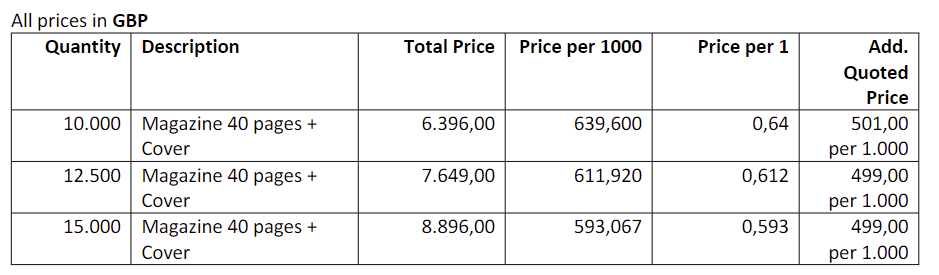

Result -
-
-
Shipment
-
To lookup values from shipments to add shipment information to the report.
-

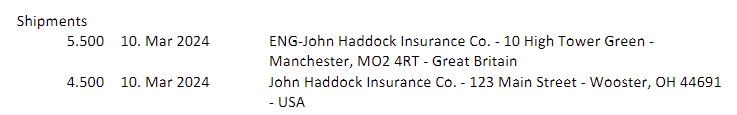

To build a grid with shipping information.
-
Max. 6 columns can be used. Make sure you only have as many columns in the report layout that are setup in the report setup.
-
The example below used 3 columns only. The setup is based on the default setup of Standard Quote and Order Confirmation.
-

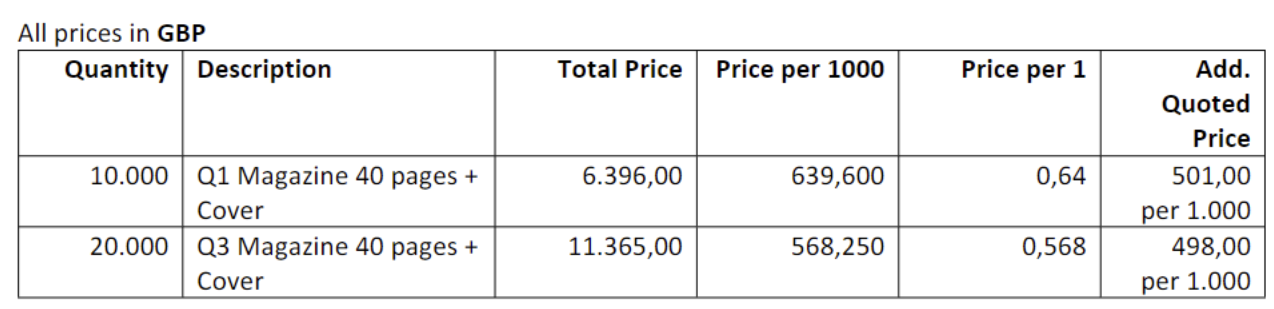

Result -
-
-
Product Parts
-
To create information product parts and versions
-
Choose the type Product Parts and on the field setup:
-
"Field in Table"
-

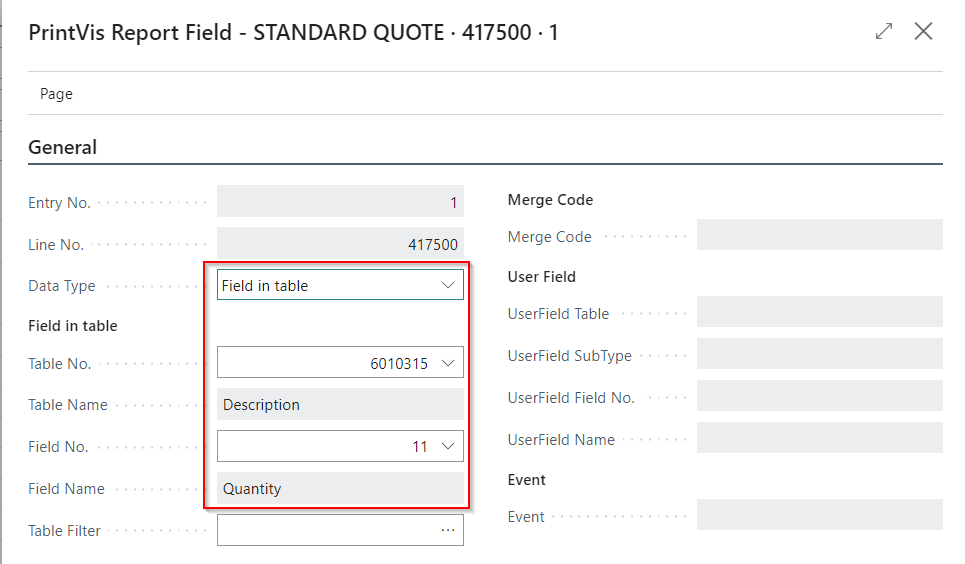

Table ID 6010315 (table PVS Desciptions)"
-
and on the field no. the desired field
-
-
-
-

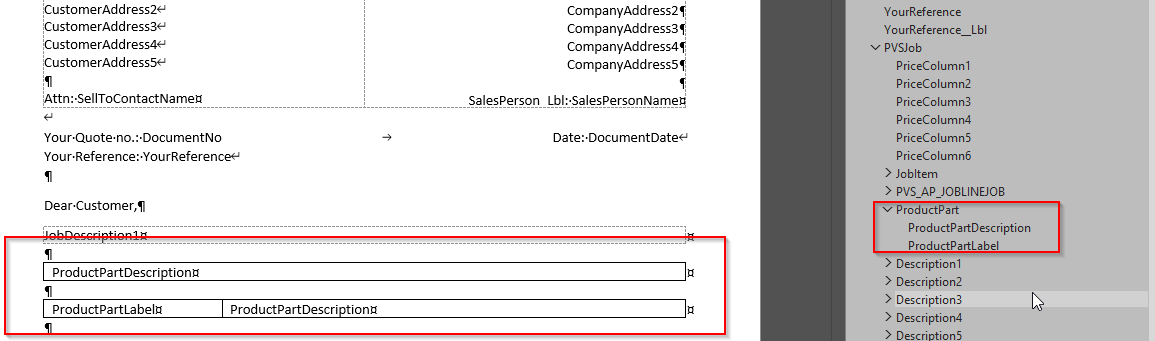

For the report layout choose the ProductPart fields, place and format them as desired in the MS Word template. Don't forget to set the looper on the table to get all lines from the product parts.
-
This section is by default in the shipped report layouts and must be removed if it should not be used and is taking space.
-
-
-
Each line:
-
Can read values from up to 6 fields that can be chosen from different tables and combined with fixed texts which can also contain translations.
-
Can be setup such that it always appears in the report section for standard descriptions - or only appears if one of the selected fields is in use and provides a value.
-
Can be sorted individually in its section.
Each Type should be placed in a table in the MS Word report layout and can be set with 1 or more columns. See further down in the report layout.
Field Setup
This setup can be used to choose from different tables and fields. Those values can be displayed based on the setting in the Description field.
| Field | Description |
|---|---|
| Entry No. | Entry No. for system use. This field is not editable. |
| Line No. | Line No. for system use. This field is not editable. |
| Data Type | Choose where the value should be read from.
|
| Sections: | The sections are grouping the setup fields for the selected Data Type:
The fields become editable only if the related Data Type is selected. |

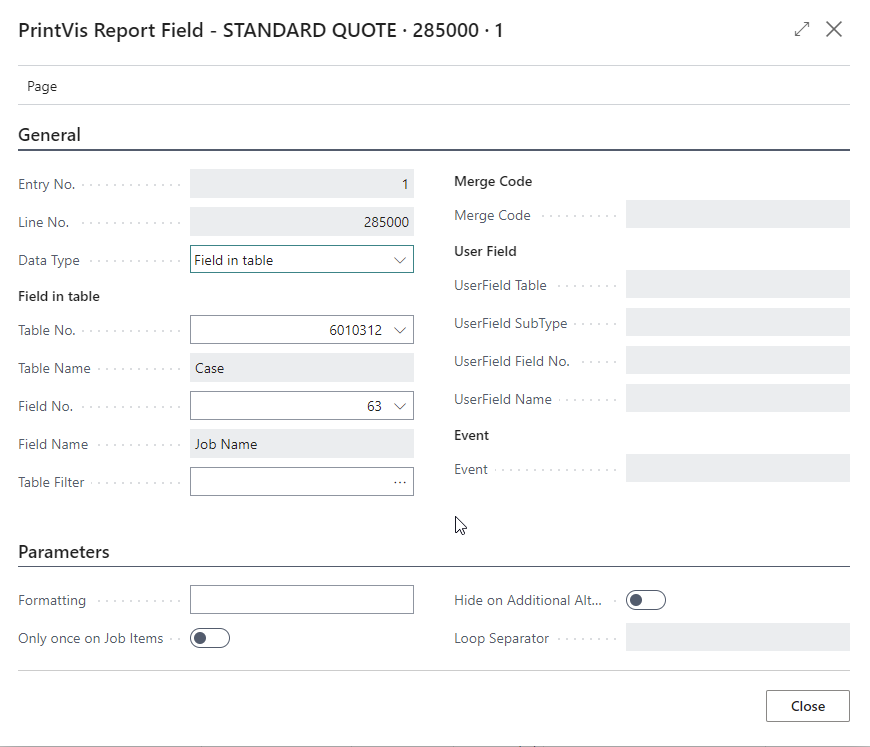

| Table No. | Choose from the available tables to look up a value. |
| Field No. | Choose from the available fields of the selected table to look up a value. |
| Table Filter | Set up a filter for the given field if more than 1 record/entry could exist for this field. |
| Merge Code | Choose a Merge Field Group to get the data from. |

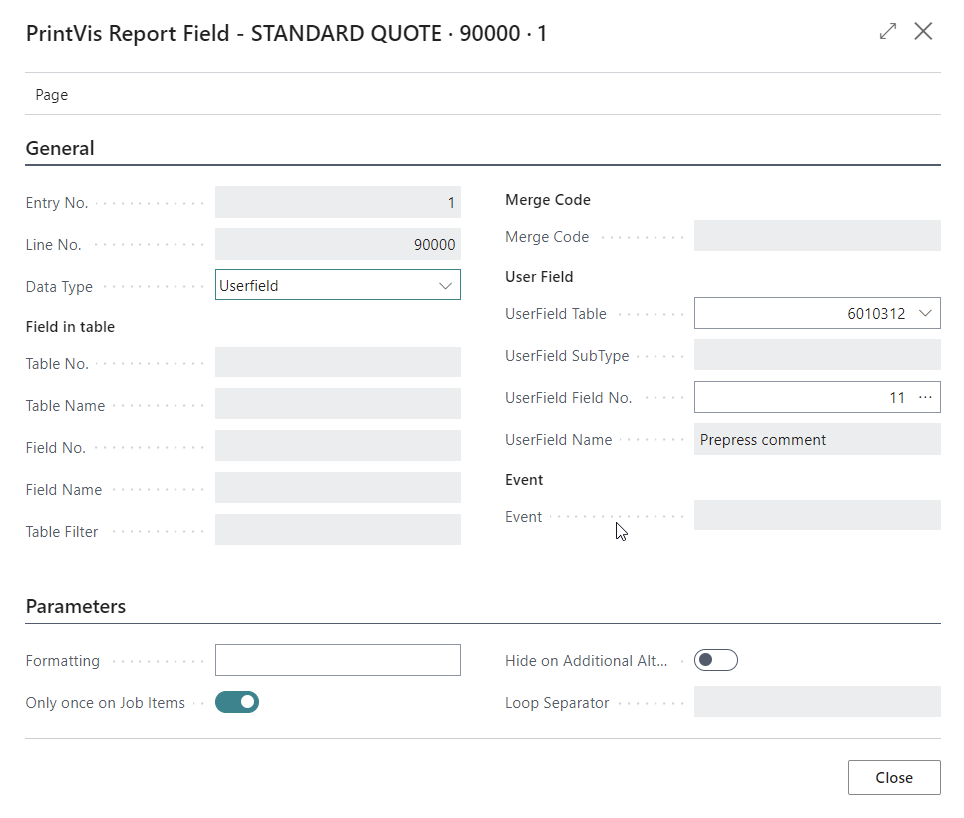

| User Field | Choose the user field area to look up a value. User fields will only show once on a report (not looping with Job Items), even with having "Only Once on Job Item" set to False. If Job Item Loop is set to "Split", then the User field will be shown along with first Job Item information. |
| User Field Sub Type | For the user field type "Job" please choose the sub-types
For other user field groups different from "Job," this field is not in use. |
| User Field No. | Choose the user field number to look up the value. |
| Event | In case more complex functions are required, an event can be defined that contains the code to return the desired values. Enter the Name into the field to change the setup. |
| Parameters Tab | On this tab, some options for the selected data can be set. |
| Formatting | If a decimal or date must be formatted, enter a formatting based
on the Business Central format options.
Find details for example here: https://learn.microsoft.com/en-us/dynamics365/business-central/dev-itpro/developer/devenv-format-property |
| Only Once on Job Items | When using the setup type "Job Items", values will be looped as often as job items are existing. If this field value is required to be displayed only once (e.g. it is a user field value), no looping is required. In this case, enable this field (set it to TRUE). |
| Hide on Additional Alternative | Only available for the Price Column Grid. Only affects job lines where the option "Additional option for the alternative" is selected on a job. If this field is enabled on the field setup, no value will be displayed for this line. |

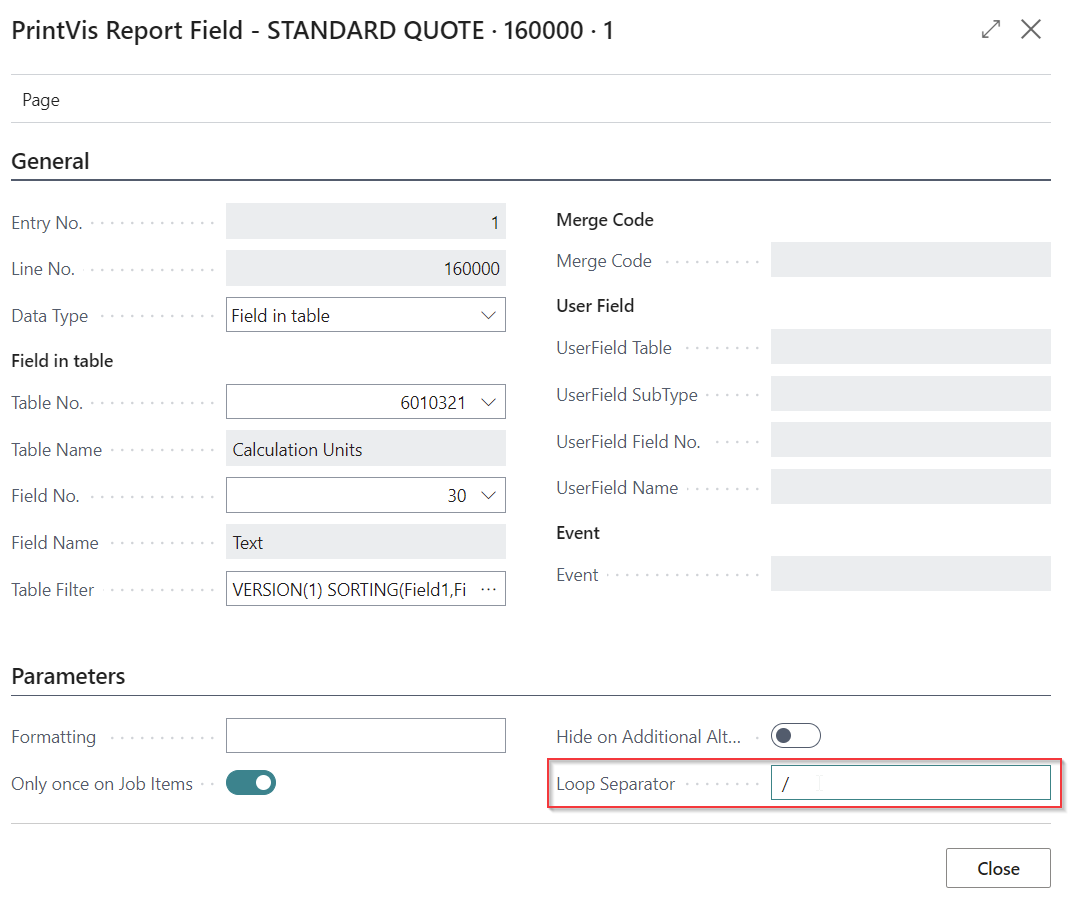

| Loop Separator | If more values will be integrated on a field, they will be separated
by the value enterd in this field. If the field stays empty, the default
separator is ", " (comma&space). This field is only available for the tables: Job Items Colors, Calculation Unit, and Calculation Detail. See "Example for Loop Separator" below. |
Example for Loop Separator:

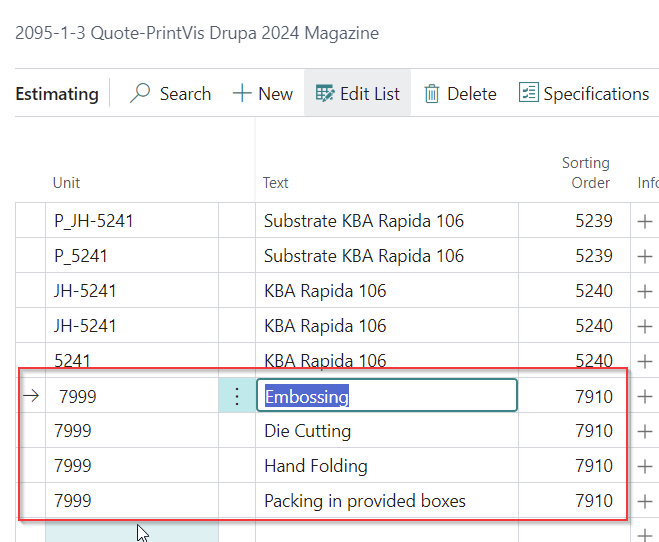

Data: Calculation Units in Estimating page. Calculation unit 7999, which is "manual hand work", is used 4 times and was renamed by the estimator.

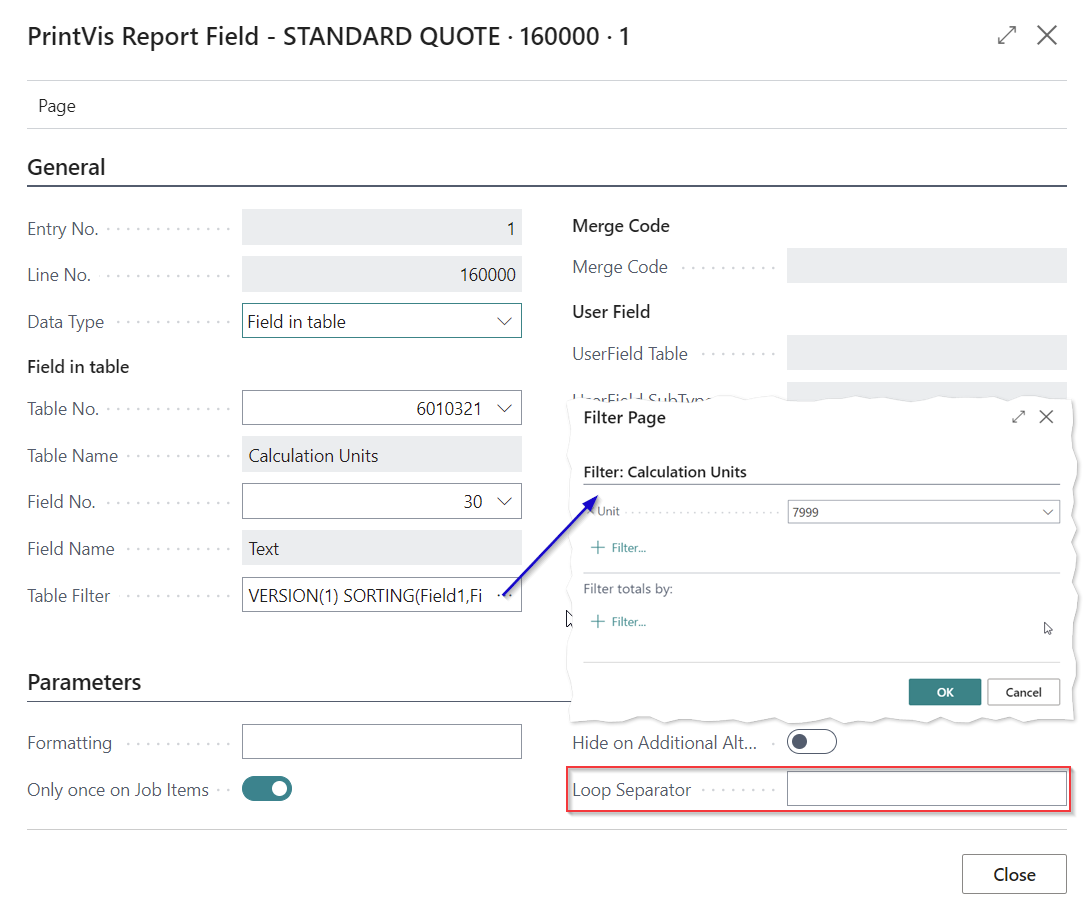

Setup: Loop Separator is empty: Default separator ", ":
The setup is a filter on calculation unit 7999.
Same setup but Loop Separator = " / ":
Result: Default separator ", ":
Result separator " / ":

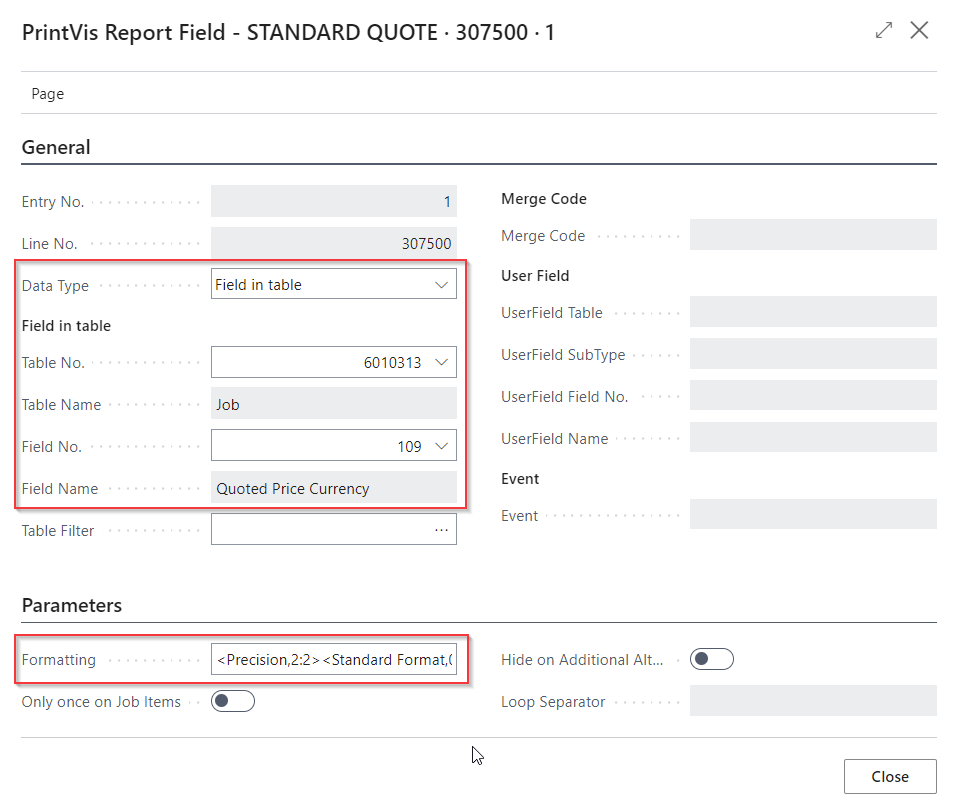

Example when choosing a field from a table with a decimal number
For Decimal numbers we recommend using the Business Central standard format "0"!
<Precision,2:3><Standard Format,0>
-
<Precision,2:3> = Display minimum 2 decimals, max. 3 decimals.
-
<Standard Format,0> Standard formatting based on actual region settings.
Another example is: <Sign><Integer Thousand><1000Character,.> or <Sign><Integer Thousand><1000Character,,>
- Here it is possible to decide about the "1000" Character which is "." or "," (Result: 1.000 or 1,000).
For more details search for "Business Central 365 Standard Decimal Formats" on Google, Bing, etc.
**Example when choosing a User Field **

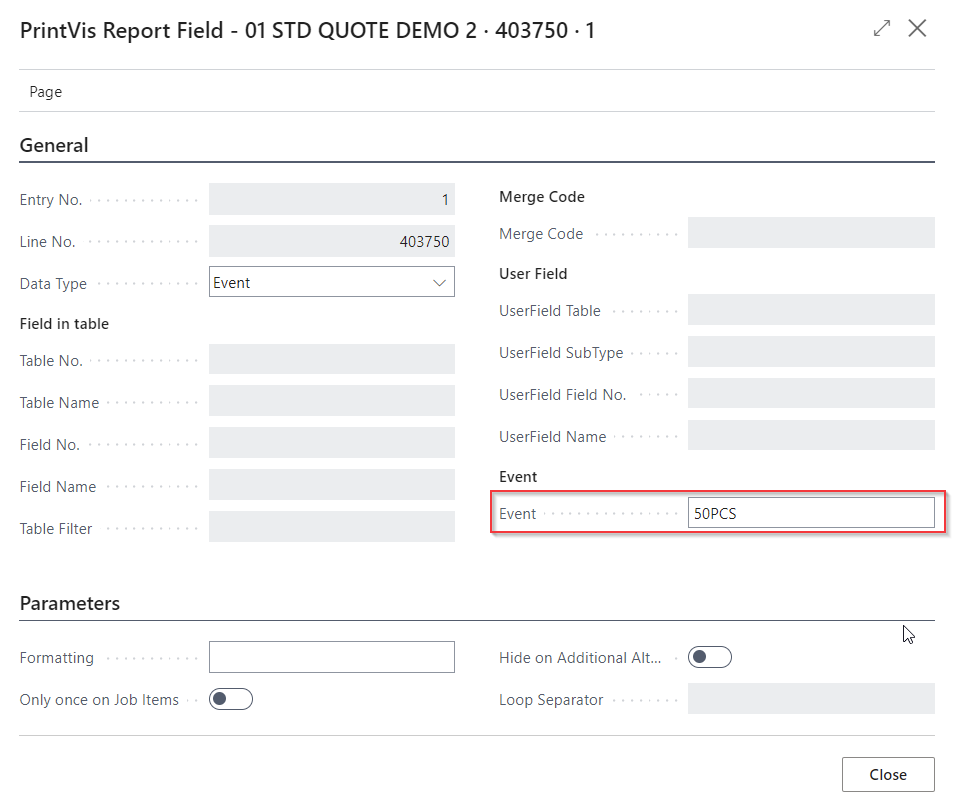

Example when using an Event
An event procedure might be required to build a more complex text block. In the example below, you can create your own procedure "100PCS" and build a custom text value with that.
Subscribe to the event:
(ObjectType::Codeunit, Codeunit::"PVS Report Mgt", 'OnCustomEvent', '', false, false)
Code example:
[EventSubscriber(ObjectType::Codeunit, Codeunit::"PVS Report Mgt ", 'OnCustomEvent', '', false, false)]
local procedure OnCustomEvent(QuoteOrderField: Record "PVS QuoteOrder Field"; var outText: Text; JobRec: Record "PVS Job"; RecRefJobitem: RecordRef; RecRefJobSheet: RecordRef; RecRefJobShipment: RecordRef);
var
begin
if QuoteOrderField."Custom Event" <> '50PCS' then
exit;
if JobRec.Quantity <> 0 then
outText := Format(JobRec."Quoted Price" / JobRec.Quantity * 50, 0, 2);
//example calculate "Price per 50 pcs"
end;
Edit option for the text output

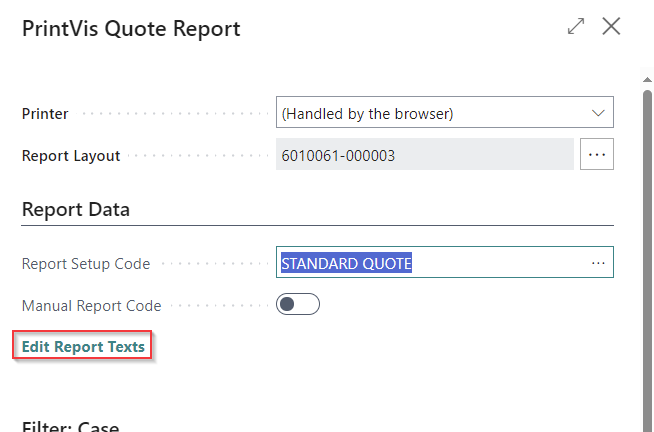

It is possible to edit the output before the report runs. On the report dialog, there is a link to open the "Edit page."
The edit page shows the texts grouped by the different sections. The idea for more complex products, is to be able to modify the product description or to add text manually.
Only the sections for the price columns and shipments cannot be edited here. They can only be modified on the job to make sure the job handling data is correct.
Please note:
-
As soon the "Edit page" was opened, the text is fixed and will not be updated by any data change on the case to keep the manual edits.
- If major changes have been made in the case data, it is possible to reload the case data which will remove all manual edits.
-
When copying a case, the edited text will not be copied to ensure the new copy can be used on any new case and to avoid wrong output.
-
Edit function creates the sorting, not the same sorting setup from the PrintVis Report Setup page. First sorting on the edit page starts with "Job Item." The Job Item section is on the top because it is viewed as the main part where edits are required, such as change the description for the product when it is more complicated or requires manual text. The next section descends down the page with Description 1, Description 2, etc.
Permission setup on PrintVis Users

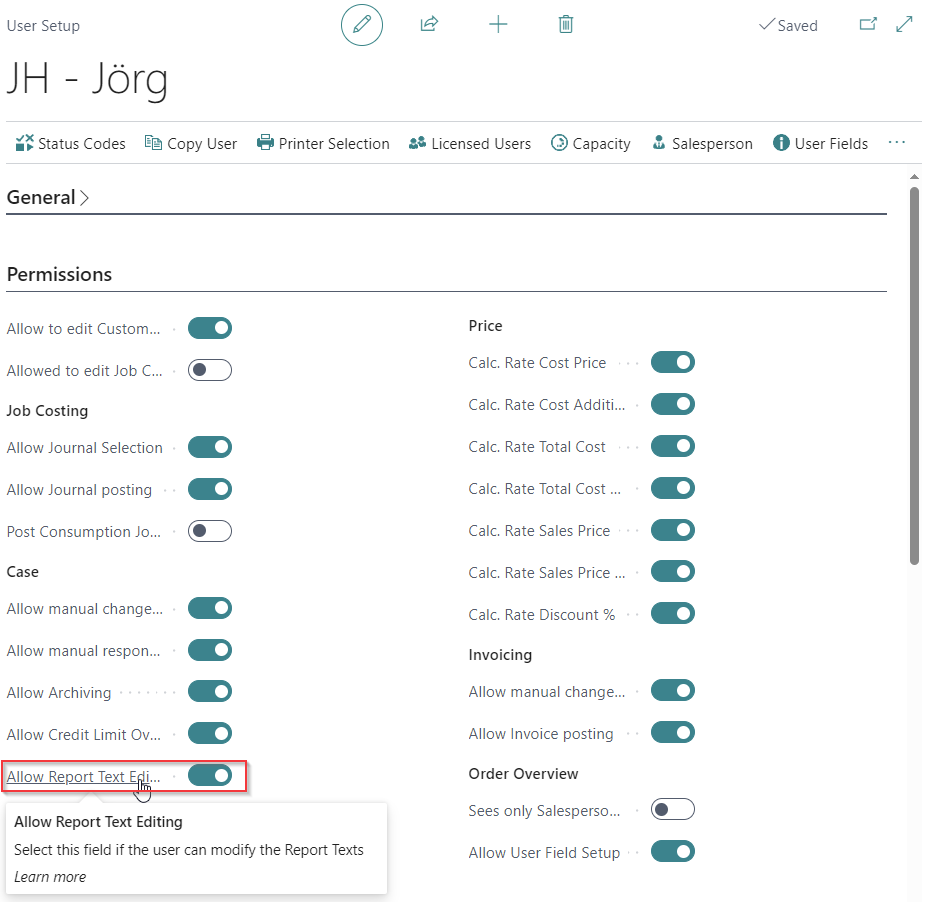

Not each user might be allowed to edit the report text. For that a permission is set on every PrintVis User.
PrintVis User Card:
Built-in Report Layout - Custom Report Layout

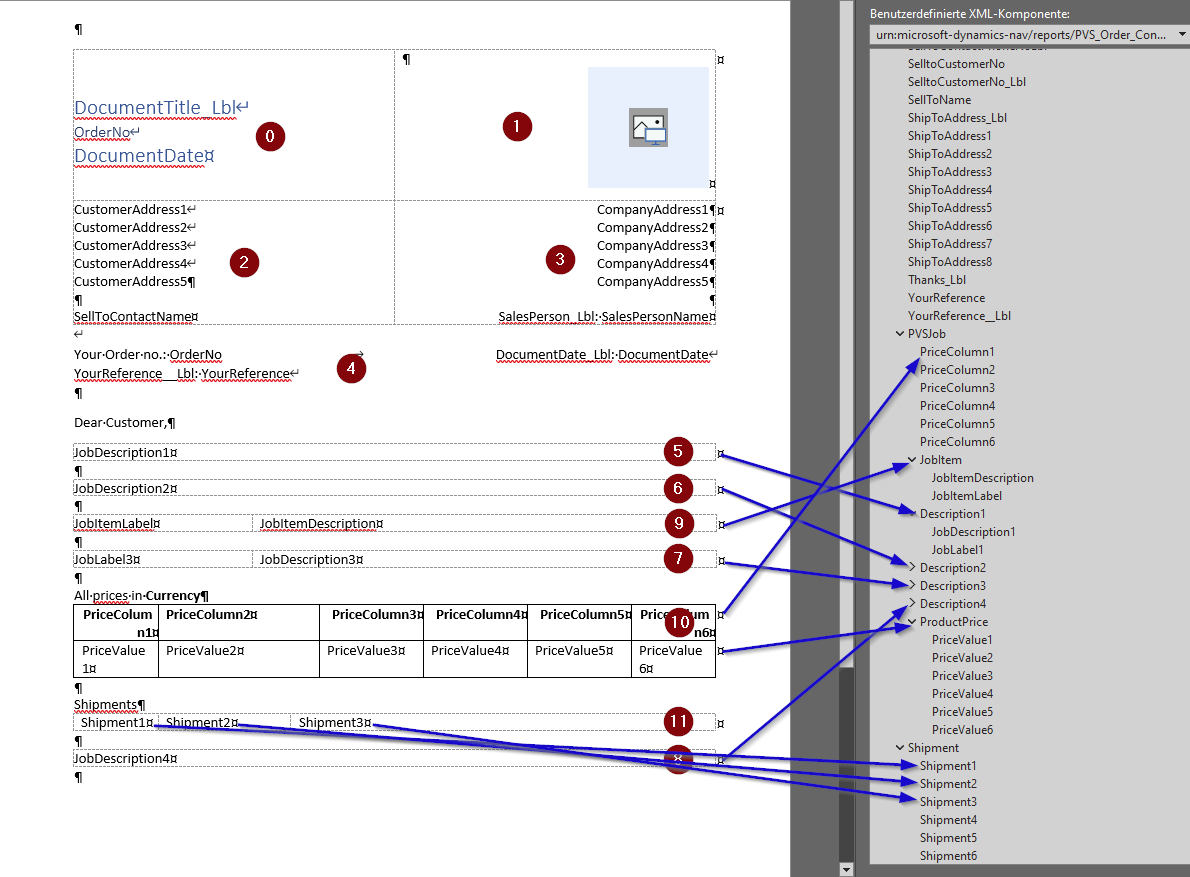

The Built-in Report Layout looks similar to the example below and can be modified with a custom report layout.
To edit the layout and see the dataset you can either:
-
Show the Developer tab in MS Word and open the XML mapping part
-
The Developer tab isn't displayed by default, but you can add it to the ribbon.
-
On the File tab, go to Options > Customize Ribbon.
-
Under Customize the Ribbon and under Main Tabs, select the Developer check box.
-
-
Here you can choose the dataset and choose the desired fields
- e.g.: urn:microsft- dynamics-nav/reports/PVS_Quote_Report/6010061/
-
-
Install Jet-Reports Express as an external component for MS Word. The mapping and selection of fields is similar.
Every setup type appears with a table area for that type. The table frames in the screenshot below are only for better visualization during the setup phase.
[!TIP]
Show the table gridlines so that you see the boundaries of table cells.
Remember to hide the gridlines when you are done editing. To show or
hide table gridlines, select the table, and then under Layout on the
Table tab, choose View Gridlines.
Areas in the layout:
0-4: Fields that care taken from the commonly known dataset on most documents for external communication.
5: Area for Description 1 type from the PrintVis report setup.
6: Area for Description 2 type from the PrintVis report setup.
7: Area for Description 3 type from the PrintVis report setup.
This is the only area that is setup with a label
column.
This can be removed if not required, or a column can be
added for the Description 1, 2, and 4.
8: Area for Description 4 type from the PrintVis report setup.
The areas for Description 5-20 are not described here but
work the same way.
They are not part of the built-in example layout and must
be added manually if required.
9: Area for Job Items setup type.
10: Area for pricing grid header and value fields.
Up to 6 columns are available
11: Area for shipments grid.
Up to 6 columns are available
The built-in report layout can be edited as any Word Report Layout, by
-
Exporting and editing on MS Word
-
Saving in MS Word and
-
Importing to the Business Central Layout again
The built-in report layout contains sections:
-
Description 1-4
-
Job Items
-
Price Columns
-
Shipments
which means only formatting of page size, margins, tabulators, etc. is required for fine-tuning. When a whole section is not required, it can be deleted from the layout.
If more "Description" fields are required they can be added as a table with 1 column only for the description, or as table with 2 columns if the label and description should be displayed.
Some notes:
-
When deleting an entire area, highlight the line above and below before deleting, to make sure the whole area is properly deleted.
-
When adding an area again, make sure a loop is added if the area must loop through records. Otherwise, only the first line is displayed.
- The built-in report layout contains loops in all sections.
-
When adding or removing a column, make sure to use the same formatting.
-
The tables in the built-in report layout are setup without any merging to the text left and right to be aligned with all text areas.
-
Removes all table frames when the layout looks as desired. The framing is typically only added to have a better editing experience.
For more details, search for the following keywords in the MS learning documentation for Business Central 365
-
Business Central Get Started Creating Report Layouts
-
Business Central Work with Word Layouts
We cannot add full links here because the link might change due to MS Versions.
Report Layout Selection
After creating a new Custom Report Layout, it is required to choose the desired report layout on the Report Layout Selection.
Report Output option on Case Card for Jobs
To be able to select which jobs will be part of the report output, there are 2 settings that are relevant:
-
The Job that is active.
- This job will be used to read the data from. For sorting options, typically the first version contains the lowest job quantity, so this version should be active.
-
The field "Report Output" is enabled by default. All lines with this field enabled are displayed as part of the Price Columns. This can be relevant if many versions have been calculated to find the best options and not all should be part of a quote.
The quote report does not display the Quote version 2 with quantity = 15.000. Only Version 1 and 3 will be displayed.
