Order Types
Order Types
Summary
Order types are used in the system as a general statistics dimension to measure the production. Typically, the order type is combined with a product group. Hereby, you may get an overview of how much each product group sells per Order type .
Furthermore, the setup of order types gives you the option - by marking the field filter product group - that only the product groups which are setup with affinity to the order type may be selected. Another option is to let the selection Order Type control decide which Status Code a case shall be started in - the required code is selected via the Status Code field. Thus, all cases attached to the selected order type will automatically be attached to the selected eco-label. You may also - via the field Eco-labels - select between the system’s standard eco-labels.
Order types are also used in the "Responsibility Areas" to control the workflow of an order.
Setup
| Code | Order Type Code |
|---|---|
| Description | Order Type description |
| Status Code | This option is to let the selection Order Type control decide which Status Code a case shall be started in - the required code is selected via the Status Code field. |
| Sorting Order | With this field, and alternative Sorting Order can be entered. The LookUp forms will usually select this Sorting Order. If no sorting order is defined, the lists will be ordered by the default primary key order |
| Type | You can select:
|
| Filter Product Groups | The setup of order types gives you the option, by marking the field filter product group, that only the product groups which are setup with affinity to the order type may be selected. |
| Totaling | If the type = totaling: Enter the order types, e. g. order type1|order type 2 |
| Bold | Select yes (or check mark), if the text for this Order Type should be presented in "bold” |
| Intension | This field can be used to make text indentation at the Order Type. 0 = no indentation1 = level 1 indentation2 = level 2 indentationetc |
| ECO Label Code | ECO Label Code relates to the "Code" field in table "Eco Label". The ECO Label Code can be selected from the Eco Label table. All cases attached to the selected order type will automatically be attached to the selected eco-label. |

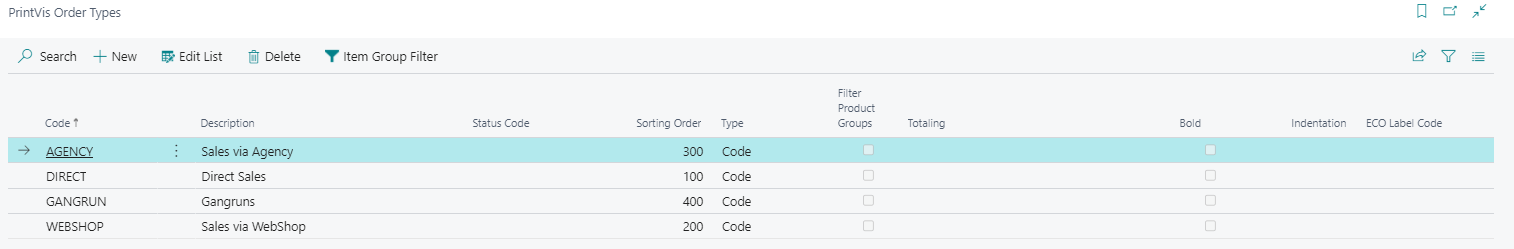

**Example **

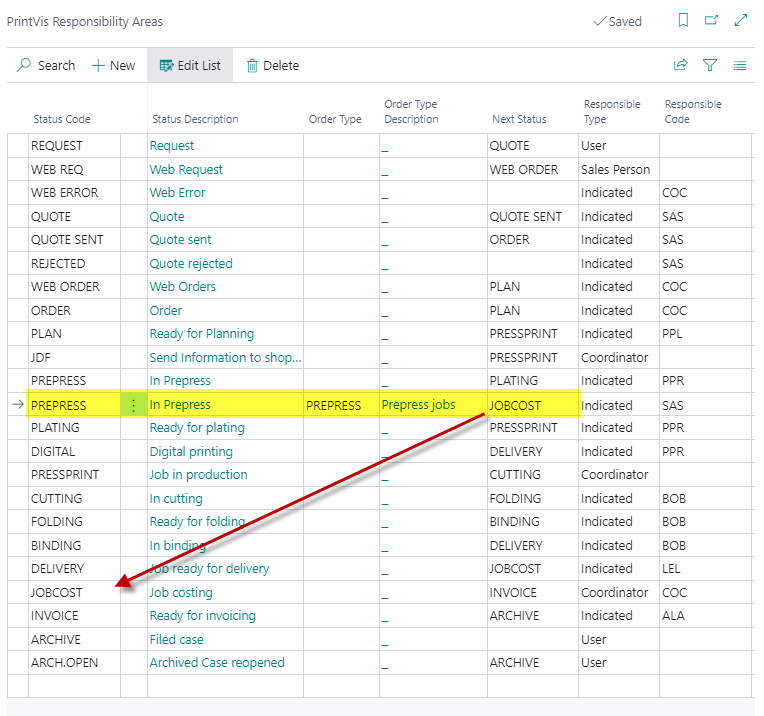

Workflow based on Order Types
